IE3 Medium Voltage Induction Motor Low Speed ROHS Cast Iron
| Place of Origin | China |
|---|---|
| Brand Name | Wanan |
| Certification | CE, ISO9001, CCC, RoHS, Reach |
| Model Number | Y YKK YKS YKKVF |
| Minimum Order Quantity | Negotiable |
| Price | USD, RMB, EURO |
| Packaging Details | Carton/Wooden Case/Pallet |
| Delivery Time | 10 days to 30 days |
| Payment Terms | T/T, L/C, Western Union, MoneyGram |
| Supply Ability | 2000PCS per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | IE3 Low Speed High Efficient Medium Voltage Induction Motor With ROHS | Voltage | Medium Voltage |
|---|---|---|---|
| Certificate | ROHS | Feature | Low Speed |
| Efficient | IE3 | Type | Induction Motor |
| Housing | Cast Iron, Aluminum, Stainless Steel | Warranty | 12 Months |
| Highlight | IE3 Medium Voltage Induction Motor,Medium Voltage Induction Motor Low Speed,Cast Iron alternating current motor |
||
Product Description

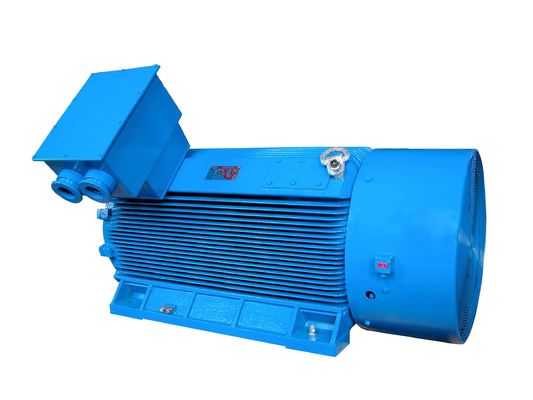

IE3 Low Speed High Efficient Medium Voltage Induction Motor With ROHS
1. Description
The IE3 Low Speed High Efficient Medium Voltage Induction Motor with ROHS is a top-quality motor designed to provide exceptional performance and energy efficiency in a variety of industrial applications. These motors feature an IE3 efficiency rating, ensuring energy savings and reduced operating costs.
With a low speed design and medium voltage capability, these motors offer a precise and powerful performance suitable for a variety of equipment, including pumps, fans, and compressors. They are designed to be compact and lightweight, making them easy to install and use in a variety of settings.
These motors feature a high-quality bearing system that ensures smooth and reliable operation for extended periods of time. They are certified to meet the highest safety and quality standards, including ROHS compliance, providing peace of mind to users.
Overall, the IE3 Low Speed High Efficient Medium Voltage Induction Motor with ROHS is a versatile and reliable motor solution that provides exceptional performance and energy efficiency. Its low speed design ensures precise control and improved performance, making it an excellent choice for a wide range of industrial applications that require reliable, durable, and high-performance motors with medium voltage capability and ROHS compliance.
2. Specifications
| Model NO. |
Y YKK YKS YKKVF |
| Starting Mode | Direct on-line Starting |
| Certification | ISO9001, CCC, Ce, RoHS, Reach |
| Brand | Wannan Motor |
| Frame | / |
| Output | 185-8000kw |
| Efficiency | IE1, IE2, IE3, IE4 |
| Poles | 2, 4, 6, 8, 10,12 |
| Duty | S1 |
| Insulation | F or H |
| Cooling |
IC611 |
| Protection Degree |
IP55 |
| Voltage |
6kv, 10kv or Customized |
| Frequency | 50Hz, 60Hz |
| Terminal | Right Side |
| Housing | Cast Iron, welded steel |
| Service Factor | / |
| Mounting Type |
/ |
| Ambient Temp. | 40°c, 1000 M. a.S.L |
| Transport Package | Carton/Wooden Case/Pallet |
| Trademark | WNM |
| Origin | China |
| HS Code | 8501520000 |
| Production Capacity | 2000PCS/Month |
3. Features
This motor can be processed by the anticorrosion anti-mould-proof process to derive outdoor (W) and outdoor corrosion protection (WF) motors. High efficiency, energy saving, low vibration, small size, light weight, reliable performance and easy installation and maintenance. The frame is made of steel plate being welded up into form of square tank shape with light weight and firm rigidity. Stator is an outer-press-assembly structure. The stator winding is F grade insulation at the winding's end part being firm banded. The whole stator has been treated with VPI technology to make stator with a robust body and good electric and moisture proof. The rotor can be developed into casting aluminum rotor or copper bar rotor. The copper cage rotor guide bar and end ring are welded by intermediate frequency, and the copper guide bar diameter groove is treated with solid technology to make it have high reliability.
4. Applications
Ideal for driving all kinds of general machinery, such as water pump, fan, compressor, crusher and etc.
5. FAQ
Q: Are you a factory or a trading company?
A:We are a factory with 65 years (Since year 1958) manufacturing experience.
Q: Can I buy samples placing orders?
A: Yes.Please feel free to contact us.
Q: Do you offer OEM service?
A: Yes, we can customize it as your request.
Q: What is your lead time?
A: About 30 days after receiving deposit.
Q: What certificates do you have?
A: We have CE, ISO. And we can apply for specific certificate for different country such as SONCAP for Nigeria, SASO for Saudi Arabia, etc
Q: What about the warranty?
A: We offer 12 warranty period as the quality guarantee and lifetime services with charges.Any parts damaged within warranty. We will provide new one for free and supply the solution within 2 workdays.
Q:What service do you offer?
A: Pre-sales service, in-sales service, after-sales service. If you become our local distributor, we can introduce end-customers to purchase from you.
Q:What's your motor winding?
A: 100% copper winding
Q:Which port is near to you?
A: Ningbo port or Shanghai port. And we can arrange to deliver Guangzhou, Shanghai, Urumqi, or other Chinese cities, too.
Q:Could you offer Origin Certification.
A: We can do as your request.
