50Hz Three Phase Variable Speed Electric Motor For Printing Machinery
| Place of Origin | China |
|---|---|
| Brand Name | Wanan |
| Certification | CE, ISO9001, CCC, RoHS, Reach |
| Model Number | YD2-90S-4/2 0.85/1.1KW |
| Minimum Order Quantity | Negotiable |
| Price | USD, RMB, EURO |
| Packaging Details | Carton/Wooden Case/Pallet |
| Delivery Time | 10 days to 30 days |
| Payment Terms | T/T, L/C, Western Union, MoneyGram |
| Supply Ability | 2000PCS per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Variable Speed Electric Motor | Feature | Explosive Proof |
|---|---|---|---|
| Certificate | GOST | Phase | Three Phase |
| Type | Induction Motor | Usage | Air Compressors Or Others |
| Housing | Cast Iron, Aluminum, Stainless Steel | Warranty | 12 Months |
| Highlight | Three Phase explosion proof electric motors,explosion proof electric motors 50Hz,Variable Speed flameproof electric motor |
||
Product Description

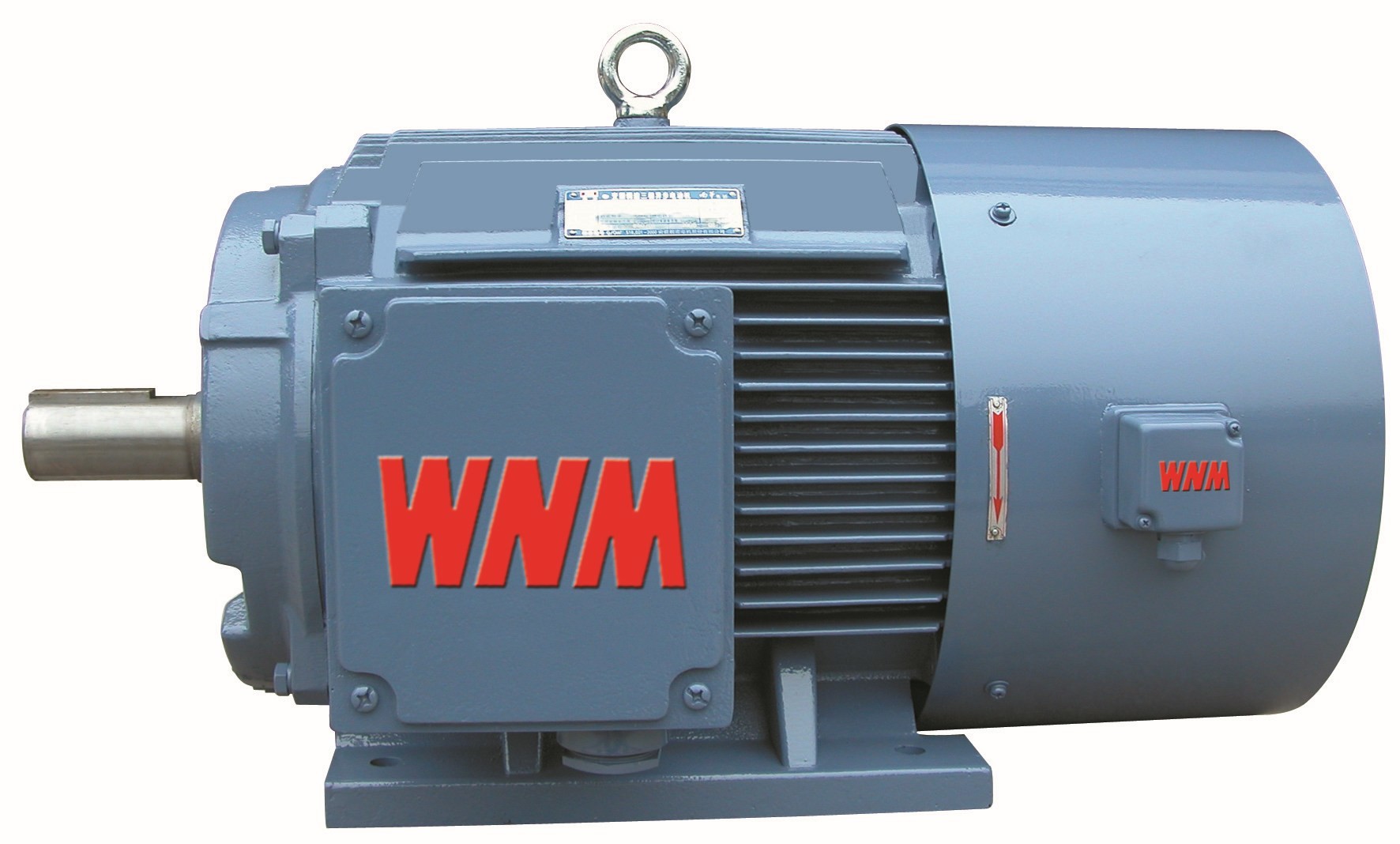

50Hz Three Phase Variable Speed Electric Motor For Printing Machinery
1. Description
The 50Hz Three Phase Variable Speed Electric Motor for Printing Machinery is a specialized solution tailored to the unique demands of printing applications. Operating at the standard 50Hz frequency, this motor delivers reliable and adjustable speed control, ensuring precision in printing processes. Its three-phase design guarantees robust performance, while the variable speed feature allows for flexibility in adapting to different printing requirements. With a focus on efficiency and accuracy, this motor enhances the functionality of printing machinery, meeting the specific needs of the printing industry with excellence.
2. Specifications
| Model NO. |
YD2-90S-4/2 0.85/1.1KW |
| Starting Mode | Direct on-line Starting |
| Certification | ISO9001, CCC, Ce, RoHS, Reach |
| Brand | Wannan Motor |
| Frame | / |
| Output | 0.45-100kw |
| Efficiency | IE3, IE4 |
| Poles | 2, 4, 6, 8, 10, 12 |
| Duty | S1 |
| Insulation | F |
| Cooling |
IC411-Tefc |
| Protection Degree |
IP54, IP55 |
| Voltage |
380V or customized |
| Frequency | 50Hz, 60Hz |
| Terminal | Top, Right Side, Left Side |
| Housing | Cast Iron, Aluminum, Stainless Steel |
| EX Exdi, Exdii At4, Exdii Bt4 | |
| Mounting Type | / |
| Ambient Temp. | 40°c, 1000 M. a.S.L |
| Transport Package | Carton/Wooden Case/Pallet |
| Trademark | WNM |
| Origin | China |
| HS Code | 8501520000 |
| Production Capacity | 2000PCS/Month |
3. Features
Simplify speed-changing systems by changing the connection to match different output and speed.
Optional Features:
Electrical:
Insulation Class:H
Thermal Protection: PTC Thermistor, Thermostat or PT100
Mechanical:
Others mountings
Sealing:Lip seal, Oil seal
Space Heater
Drain Hole
4. Applications
Widely applied in the transmission machinery of machinery and mining, metallurgy, textile, printing and dyeing, chemical industry by which step change of rotational speed is needed to meet the requirements of load character.
5. FAQ
Q: Are you a factory or a trading company?
A:We are a factory with 65 years (Since year 1958) manufacturing experience.
Q: Can I buy samples placing orders?
A: Yes.Please feel free to contact us.
Q: Do you offer OEM service?
A: Yes, we can customize it as your request.
Q: What is your lead time?
A: About 30 days after receiving deposit.
Q: What certificates do you have?
A: We have CE, ISO. And we can apply for specific certificate for different country such as SONCAP for Nigeria, SASO for Saudi Arabia, etc
Q: What about the warranty?
A: We offer 12 warranty period as the quality guarantee and lifetime services with charges.Any parts damaged within warranty. We will provide new one for free and supply the solution within 2 workdays.
Q:What service do you offer?
A: Pre-sales service, in-sales service, after-sales service. If you become our local distributor, we can introduce end-customers to purchase from you.
Q:What's your motor winding?
A: 100% copper winding
Q:Which port is near to you?
A: Ningbo port or Shanghai port. And we can arrange to deliver Guangzhou, Shanghai, Urumqi, or other Chinese cities, too.
Q:Could you offer Origin Certification.
A: We can do as your request.
