High Efficient Energy Saving Three Phase Explosion Proof Electric Motors
| Place of Origin | China |
|---|---|
| Brand Name | Wanan |
| Certification | CE, ISO9001, CCC, RoHS, Reach |
| Model Number | YB2 YB3 YFB3 |
| Minimum Order Quantity | Negotiable |
| Price | USD, RMB, EURO |
| Packaging Details | Carton/Wooden Case/Pallet |
| Delivery Time | 10 days to 30 days |
| Payment Terms | T/T, L/C, Western Union, MoneyGram |
| Supply Ability | 2000PCS per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Explosion Proof Electric Motors | Efficient | High Efficient |
|---|---|---|---|
| Protection Degree | Explosive Proof | Phase | Three Phase |
| Type | Induction Motor | Certificate | CE |
| Housing | Cast Iron, Aluminum, Stainless Steel | Warranty | 12 Months |
| Highlight | Three Phase three phase electric motor,High Efficient three phase electric motor,IE4 explosion proof dc motor |
||
Product Description

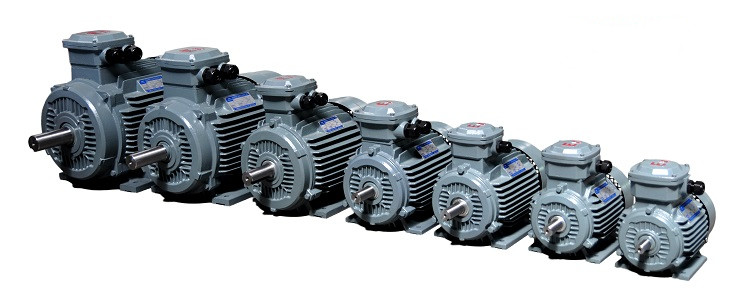

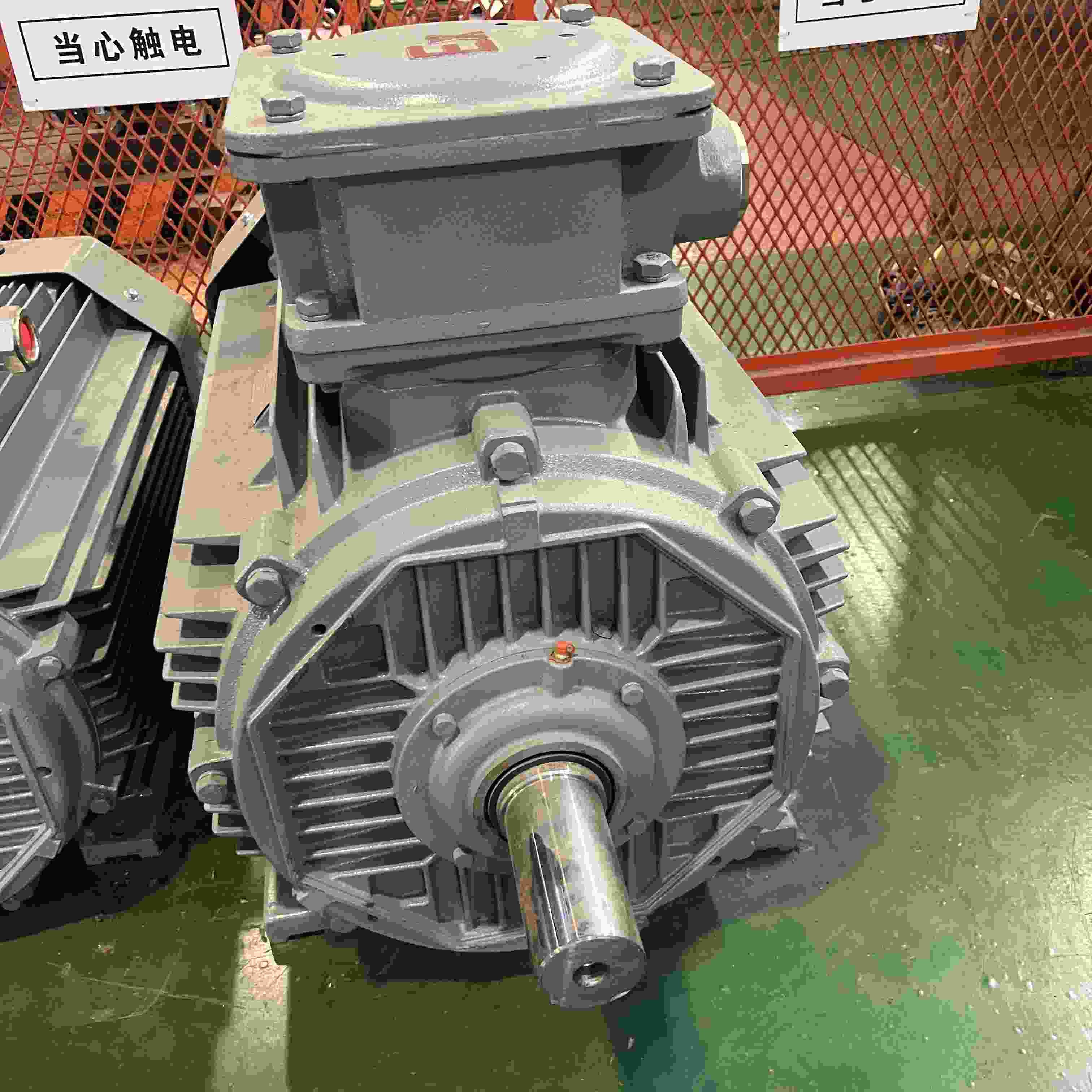

High Efficient Energy Saving Three Phase Explosion Proof Electric Motors
1. Description
High Efficient Energy Saving Three Phase Explosion Proof Electric Motors are designed to operate safely in hazardous environments where flammable gases or dust may be present. These motors are built with Inverter Duty electrical designs that allow for flexible operations and energy savings. The robust cast iron or steel band designs maximize reliability and minimize downtime. The motors are suitable for a wide range of applications, including those that require continuous working duty. With their high efficiency and energy-saving features, these motors are an excellent choice for those looking to reduce their energy consumption and carbon footprint.
2. Specifications
| Model NO. | YB2 YB3 YFB3 |
| Starting Mode | Direct on-line Starting |
| Certification | ISO9001, CCC, Ce, RoHS, Reach |
| Brand | Wannan Motor |
| Frame | 80-355mm |
| Output | 0.18-375kw |
| Efficiency | IE3, IE4 |
| Poles | 2, 4, 6, 8 |
| Duty | S1 |
| Insulation | F or H |
| Cooling | IC411-Tefc, IC416 |
| Protection Degree | IP55, IP56, IP65 |
| Voltage | 380V.660V.380V/660V, 660/1140V..... |
| Frequency | 50Hz, 60Hz |
| Terminal | Top |
| Housing | Cast Iron, Aluminum, Stainless Steel |
| EX Exdi, Exdii At4, Exdii Bt4 | |
| Mounting Type | / |
| Ambient Temp. | 40°c, 1000 M. a.S.L |
| Transport Package | Carton/Wooden Case/Pallet |
| Trademark | WNM |
| Origin | China |
| HS Code | 8501520000 |
| Production Capacity | 2000PCS/Month |
3. Features
Exd-symnbol ExdI,ExdIIAT4,ExdIIBT4, Category I:surface highest temperature no higher than 150ºC(when coal dust may cover the motor surface), no higher than 450ºC(when coal dust will not cover the surface or some protection work has been done to prevent the coal dust accumulation) CategoryII :surface highest temperature no higher than T1(450ºC),T2(300ºC),T3(200ºC),T4(135ºC); Terminal box with three or six terminals for rubber jacket cable (plastic cable) and steel cable.
4. Applications
Ideal for the coal mine where methane and coal dust may be present(Ex dI)and dangerous explosion areas(Ex dIIT4,dIIBT4)in the plant with the classIIA, IIB and temperature T1~T4 flammable gas.
5. FAQ
Q: Are you a factory or a trading company?
A:We are a factory with 65 years (Since year 1958) manufacturing experience.
Q: Can I buy samples placing orders?
A: Yes.Please feel free to contact us.
Q: Do you offer OEM service?
A: Yes, we can customize it as your request.
Q: What is your lead time?
A: About 30 days after receiving deposit.
Q: What certificates do you have?
A: We have CE, ISO. And we can apply for specific certificate for different country such as SONCAP for Nigeria, SASO for Saudi Arabia, etc
Q: What about the warranty?
A: We offer 12 warranty period as the quality guarantee and lifetime services with charges.Any parts damaged within warranty. We will provide new one for free and supply the solution within 2 workdays.
Q:What service do you offer?
A: Pre-sales service, in-sales service, after-sales service. If you become our local distributor, we can introduce end-customers to purchase from you.
Q:What's your motor winding?
A: 100% copper winding
Q:Which port is near to you?
A: Ningbo port or Shanghai port. And we can arrange to deliver Guangzhou, Shanghai, Urumqi, or other Chinese cities, too.
Q:Could you offer Origin Certification.
A: We can do as your request.
