Explosive Proof Pharmaceutical Special Purpose Motors Stainless Steel Material
| Place of Origin | China |
|---|---|
| Brand Name | Wanan |
| Certification | CE, ISO9001, CCC, RoHS, Reach |
| Model Number | YD |
| Minimum Order Quantity | Negotiable |
| Price | USD, RMB, EURO |
| Packaging Details | Carton/Wooden Case/Pallet |
| Delivery Time | 10 days to 30 days |
| Payment Terms | T/T, L/C, Western Union, MoneyGram |
| Supply Ability | 2000PCS per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Special Electric Motors | Protection | Customized |
|---|---|---|---|
| Certificate | NEMA Premium | Phase | Three Phase |
| Type | Induction Motor | Usage | Pharmaceutical |
| Housing | Cast Iron, Aluminum, Stainless Steel | Warranty | 12 Months |
| Highlight | Pharmaceutical special purpose motors,NEMA Premium special purpose motors,Stainless Steel 3 phase motor |
||
Product Description

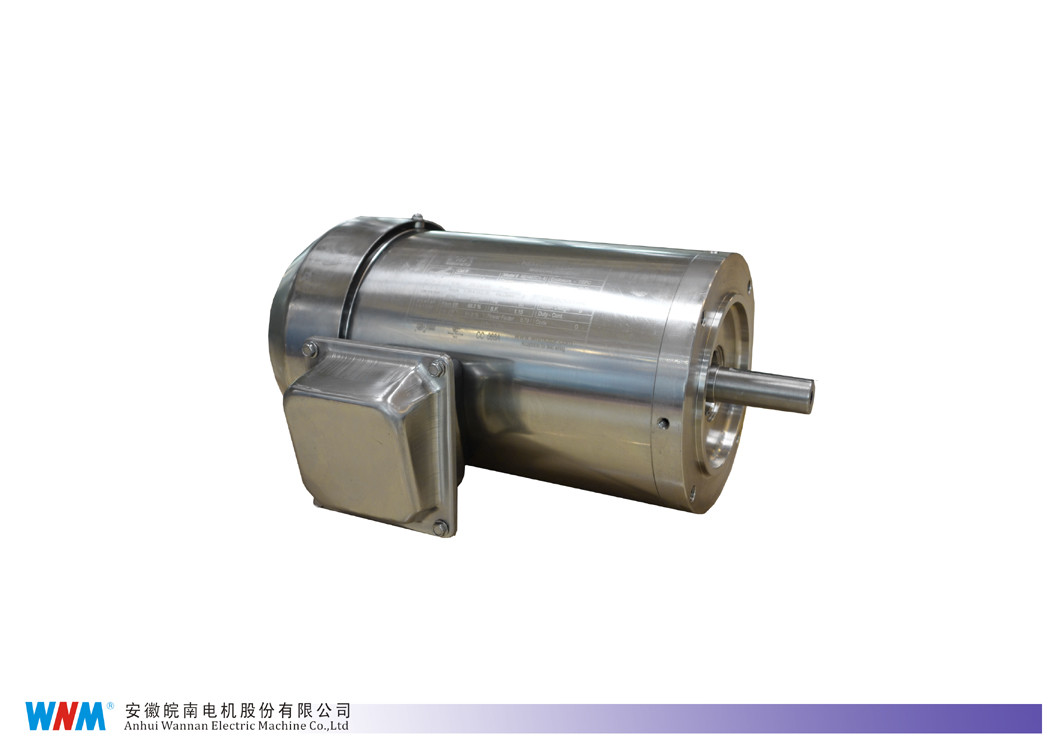

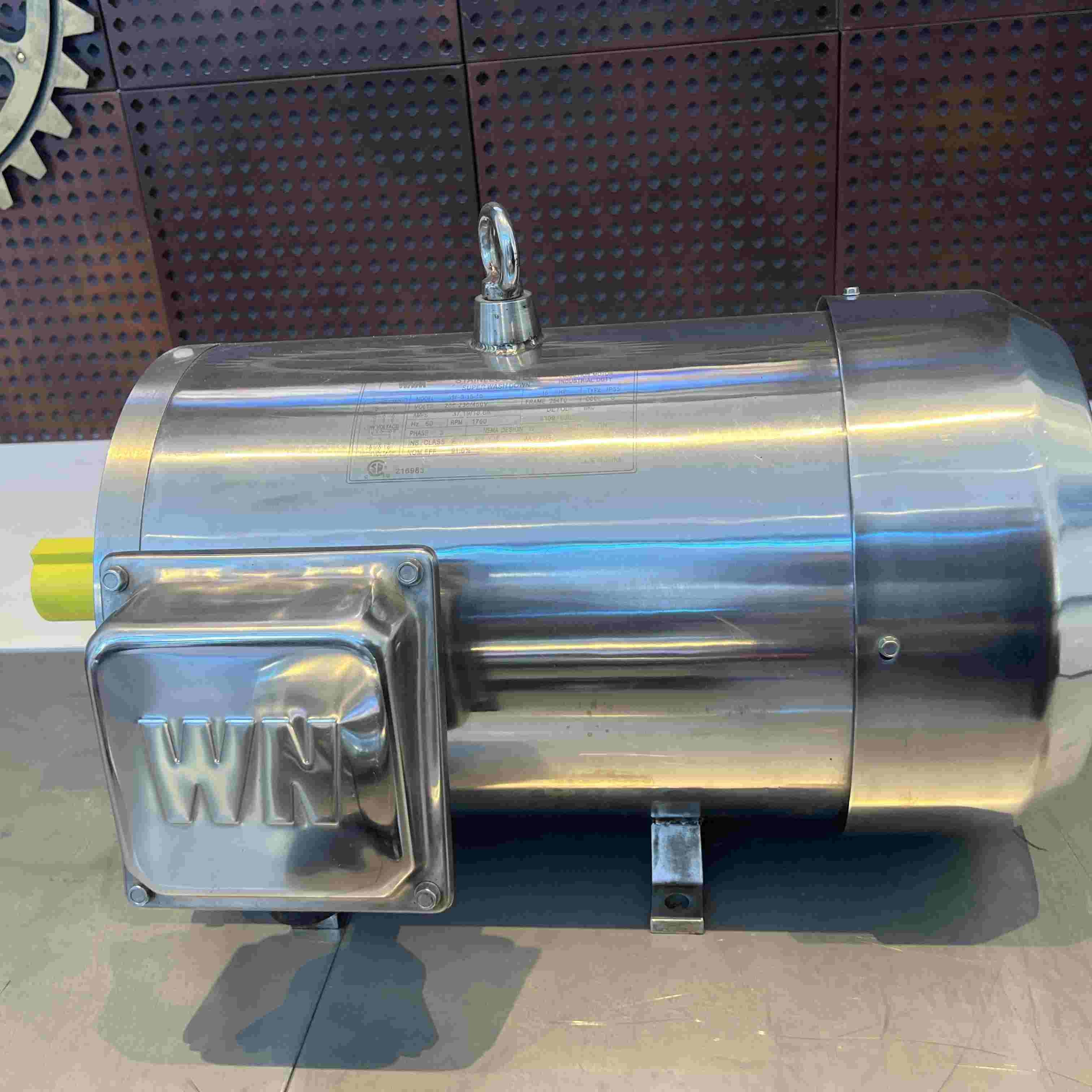

Explosive Proof Pharmaceutical Special Purpose Motors Stainless Steel Material
1. Description
The Stainless Steel Special Purpose Motors designed for pharmaceutical applications are not only explosive-proof but also constructed from high-quality stainless steel. Engineered to meet stringent safety standards, these motors ensure reliable and safe operation in pharmaceutical environments. The use of stainless steel enhances durability and corrosion resistance, making them ideal for specialized pharmaceutical applications. With their focus on both explosive-proof features and premium materials, these motors offer a dependable and durable solution for industries where safety, cleanliness, and reliability are paramount concerns.
2. Specifications
| Model NO. |
YD |
| Starting Mode | Direct on-line Starting |
| Certification | ISO9001, CCC, Ce, RoHS, Reach |
| Brand | Wannan Motor |
| Frame | / |
| Output | 0.45-100kw |
| Efficiency | IE3, IE4 |
| Poles | 2, 4, 6, 8, 10, 12 |
| Duty | S1 |
| Insulation | F |
| Cooling |
IC411-Tefc |
| Protection Degree |
IP54, IP55 |
| Voltage |
380V or customized |
| Frequency | 50Hz, 60Hz |
| Terminal | Top, Right Side, Left Side |
| Housing | Cast Iron, Aluminum, Stainless Steel |
| EX Exdi, Exdii At4, Exdii Bt4 | |
| Mounting Type | / |
| Ambient Temp. | 40°c, 1000 M. a.S.L |
| Transport Package | Carton/Wooden Case/Pallet |
| Trademark | WNM |
| Origin | China |
| HS Code | 8501520000 |
| Production Capacity | 2000PCS/Month |
3. Features
All external surfaces 300 series stainless steel: motor frame, endplates, conduit box, shaft and base. Four condensate drains in each endplate. Conduit box gasketed. Lip seals. Especially effective in highly corrosive environments where paint or other finishes do not hold up.
4. Applications
Designed for continuous duty on close coupled pumps with NEMA JM mounting dimensions which are ideal for fluid circulation and transfer applications ranging from treatment plants to swimming pools.
5. FAQ
Q: Are you a factory or a trading company?
A:We are a factory with 65 years (Since year 1958) manufacturing experience.
Q: Can I buy samples placing orders?
A: Yes.Please feel free to contact us.
Q: Do you offer OEM service?
A: Yes, we can customize it as your request.
Q: What is your lead time?
A: About 30 days after receiving deposit.
Q: What certificates do you have?
A: We have CE, ISO. And we can apply for specific certificate for different country such as SONCAP for Nigeria, SASO for Saudi Arabia, etc
Q: What about the warranty?
A: We offer 12 warranty period as the quality guarantee and lifetime services with charges.Any parts damaged within warranty. We will provide new one for free and supply the solution within 2 workdays.
Q:What service do you offer?
A: Pre-sales service, in-sales service, after-sales service. If you become our local distributor, we can introduce end-customers to purchase from you.
Q:What's your motor winding?
A: 100% copper winding
Q:Which port is near to you?
A: Ningbo port or Shanghai port. And we can arrange to deliver Guangzhou, Shanghai, Urumqi, or other Chinese cities, too.
Q:Could you offer Origin Certification.
A: We can do as your request.
