Dust Proof Explosion Proof Three Phase Electrical Motor With CE
| Place of Origin | China |
|---|---|
| Brand Name | Wanan |
| Certification | CE, ISO9001, CCC, RoHS, Reach |
| Model Number | YXEJ |
| Minimum Order Quantity | Negotiable |
| Price | USD, RMB, EURO |
| Packaging Details | Carton/Wooden Case/Pallet |
| Delivery Time | 10 days to 30 days |
| Payment Terms | T/T, L/C, Western Union, MoneyGram |
| Supply Ability | 2000PCS per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Dust Proof Explosion-proof Three Phase Electrical Motor With CE | Phase | 3 Phase |
|---|---|---|---|
| Feature | Explosion Proof | Power | Customized |
| Certificate | CE | Housing | Cast Iron, Aluminum, Stainless Steel |
| Protection Degree | IP55/56/65 | Warranty | 12 Months |
| Highlight | Explosion Proof Three Phase Electrical Motor,Dustproof 3 Phase Electric Motor,IP56 Three Phase Electrical Motor |
||
Product Description

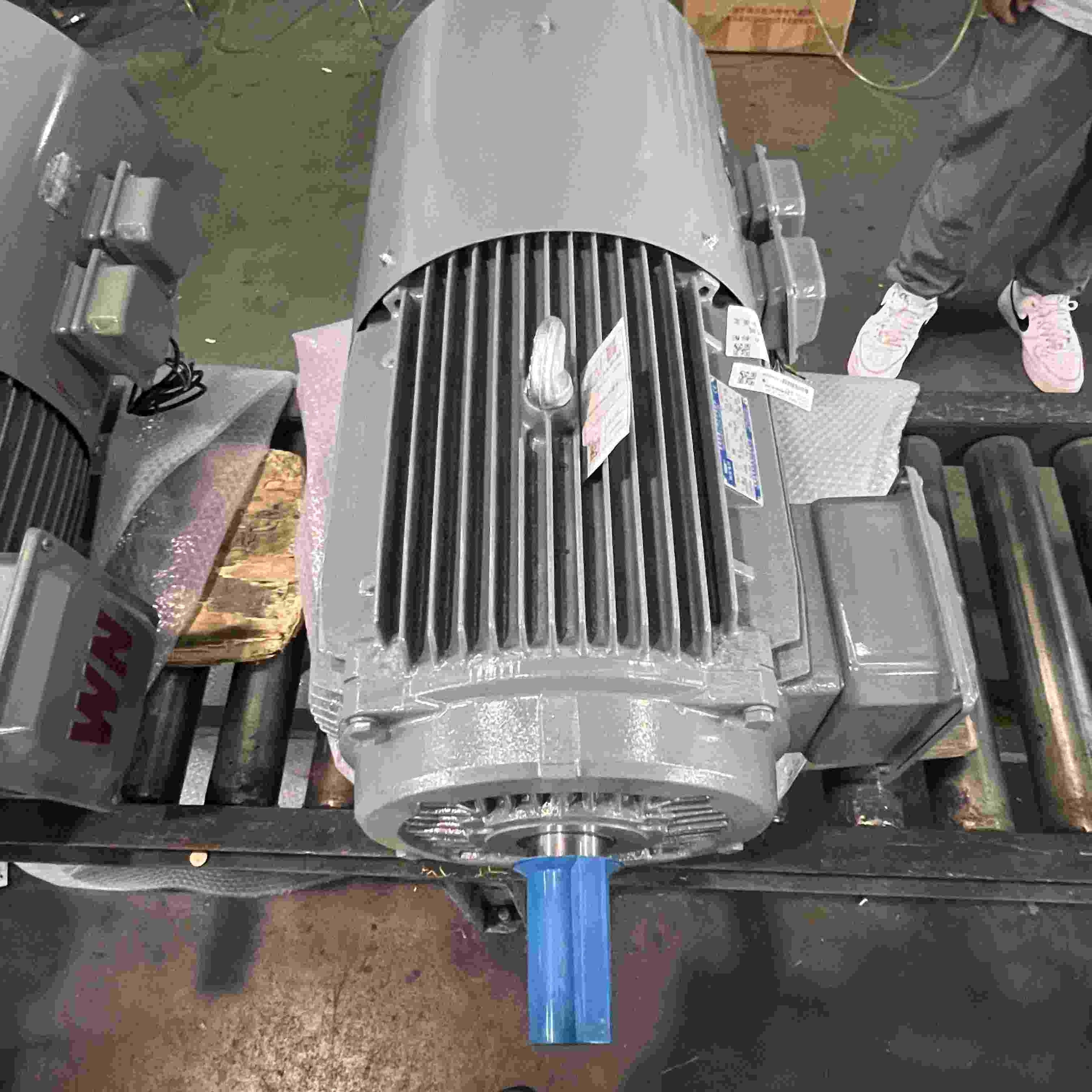

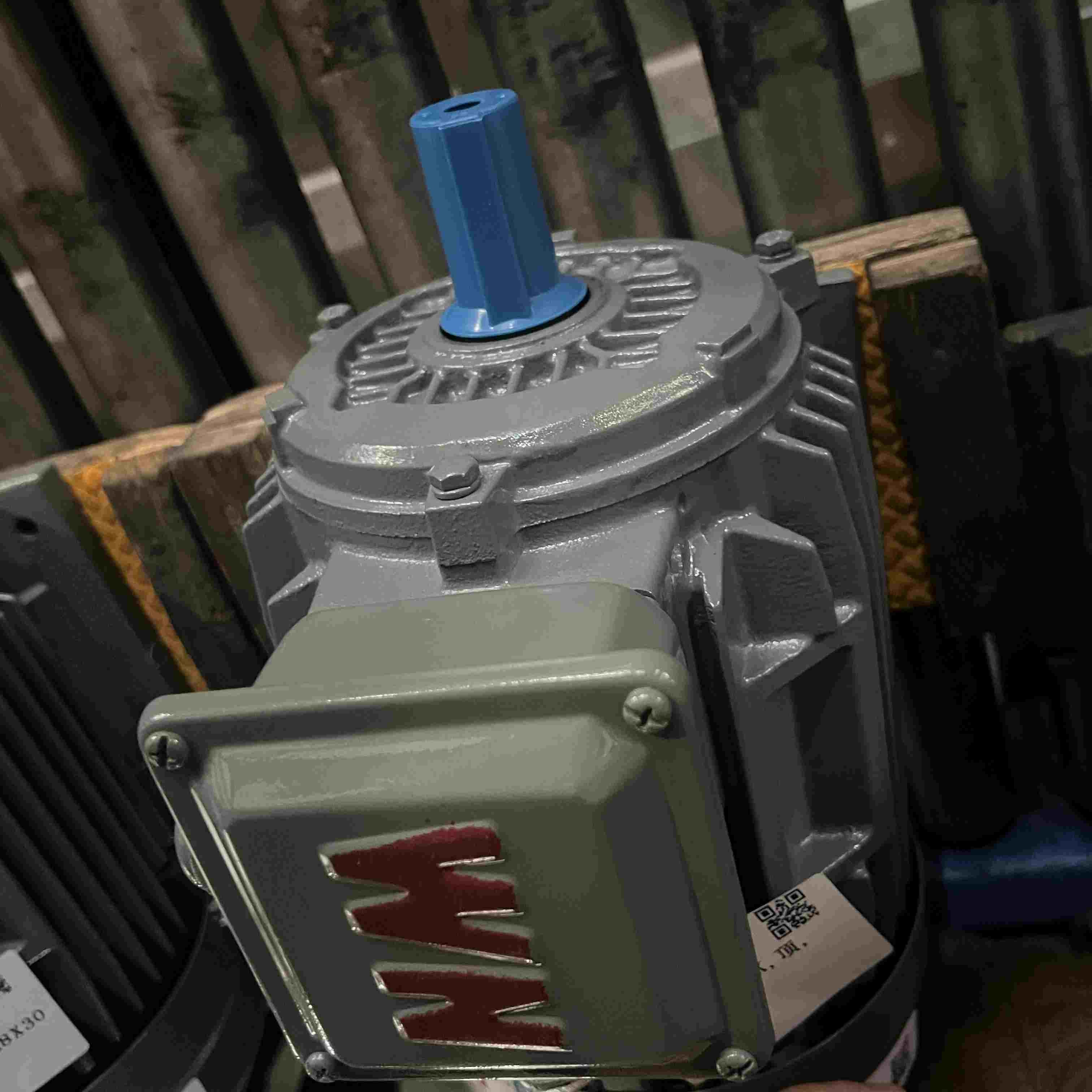

Dust Proof Explosion-proof Three Phase Electrical Motor with CE
1. Description
Introducing the groundbreaking "Dust Proof Explosion-proof Three Phase Electrical Motor with CE" – a motor engineered to excel in hazardous environments while ensuring protection against dust and potential explosions. This motor sets new benchmarks in safety and reliability for industrial applications.
Designed with a focus on dust-proof capabilities, this motor features advanced sealing technology that prevents the ingress of dust and debris. This not only enhances the motor's performance but also extends its lifespan, reducing the risk of malfunctions and downtime in challenging industrial environments.
In addition to its dust-proof design, this motor carries an explosion-proof rating, making it suitable for hazardous locations where flammable gases or vapors may be present. It is meticulously engineered to withstand potential explosive atmospheres, ensuring the safety of personnel and equipment.
The CE certification further validates the motor's compliance with European safety standards, guaranteeing its reliability, performance, and adherence to strict quality requirements. With this certification, you can have confidence in the motor's safety and suitability for use in various industrial settings.
Beyond its safety features, this motor delivers exceptional performance. Its three-phase design enables efficient power transmission and smooth operation, ensuring optimal performance in demanding applications. The motor's robust construction and high-quality components ensure durability and reliability even under extreme conditions.
The "Dust Proof Explosion-proof Three Phase Electrical Motor with CE" is an ideal choice for industries such as petrochemical, mining, and pharmaceutical, where safety and reliability are paramount. Experience peace of mind as you operate in hazardous environments, knowing that this motor provides superior protection and dependable performance.
Embrace the future of industrial motors with this cutting-edge solution. Benefit from its dust-proof and explosion-proof features, CE certification, and exceptional performance. Elevate your industrial operations to new heights of safety, reliability, and efficiency with this revolutionary motor.
2. Specifications
| Model NO. |
YXEJ |
| Starting Mode | Direct on-line Starting |
| Certification | ISO9001, CCC, Ce, RoHS, Reach |
| Brand | Wannan Motor |
| Frame | 80-315mm |
| Output | 0.18-220kw |
| Efficiency | IE2 |
| Poles | 2, 4, 6, 8, 10 |
| Duty | S1 |
| Insulation | F |
| Cooling |
IC411-Tefc |
| Protection Degree |
IP55 (Motor) & IP23 (Brake) |
| Voltage | 380V, or Customized |
| Frequency | 50Hz, 60Hz |
| Terminal | Top, Right Side, Left Side |
| Housing | Cast Iron, Aluminum, Stainless Steel |
| Service Factor | 1.0 |
| Mounting Type |
B3, B5, B35 |
| Ambient Temp. | 40°c, 1000 M. a.S.L |
| Transport Package | Carton/Wooden Case/Pallet |
| Trademark | WNM |
| Origin | China |
| HS Code | 8501520000 |
| Production Capacity | 2000PCS/Month |
3. Features
Electromagnetic brake, fast braking, energy saving, simple structure, exact position.
Optional Features:
Electrical:
Insulation Class:H
Thermal Protection: PTC Thermistor, Thermostat or PT100
Mechanical:
Others mountings
Sealing:Lip seal, Oil seal
Space Heater
Drain Hole
4. Applications
Widely used for driving machine tools, printing machinery, forging press, transport machinery, packing machinery, food machinery, construction machinery, and woodworking machinery where quick stop, accurate braking, reciprocated operation are demanded.
5. FAQ
Q: Are you a factory or a trading company?
A:We are a factory with 65 years (Since year 1958) manufacturing experience.
Q: Can I buy samples placing orders?
A: Yes.Please feel free to contact us.
Q: Do you offer OEM service?
A: Yes, we can customize it as your request.
Q: What is your lead time?
A: About 30 days after receiving deposit.
Q: What certificates do you have?
A: We have CE, ISO. And we can apply for specific certificate for different country such as SONCAP for Nigeria, SASO for Saudi Arabia, etc
Q: What about the warranty?
A: We offer 12 warranty period as the quality guarantee and lifetime services with charges.Any parts damaged within warranty. We will provide new one for free and supply the solution within 2 workdays.
Q:What service do you offer?
A: Pre-sales service, in-sales service, after-sales service. If you become our local distributor, we can introduce end-customers to purchase from you.
Q:What's your motor winding?
A: 100% copper winding
Q:Which port is near to you?
A: Ningbo port or Shanghai port. And we can arrange to deliver Guangzhou, Shanghai, Urumqi, or other Chinese cities, too.
Q:Could you offer Origin Certification.
A: We can do as your request.
