Marine Water Proof Low Vibration Three Phase Electrical Motor With CE
| Place of Origin | China |
|---|---|
| Brand Name | Wanan |
| Certification | CE, ISO9001, CCC, RoHS, Reach |
| Model Number | YXEJ |
| Minimum Order Quantity | Negotiable |
| Price | USD, RMB, EURO |
| Packaging Details | Carton/Wooden Case/Pallet |
| Delivery Time | 10 days to 30 days |
| Payment Terms | T/T, L/C, Western Union, MoneyGram |
| Supply Ability | 2000PCS per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Three Phase Electrical Motor | Frequency | VFD |
|---|---|---|---|
| Feature | Explosion Proof | Power | Customized |
| Certificate | CE | Housing | Cast Iron, Aluminum, Stainless Steel |
| Protection Degree | IP55/56/65 | Warranty | 12 Months |
Product Description

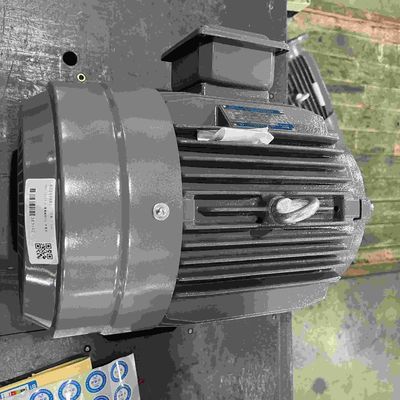

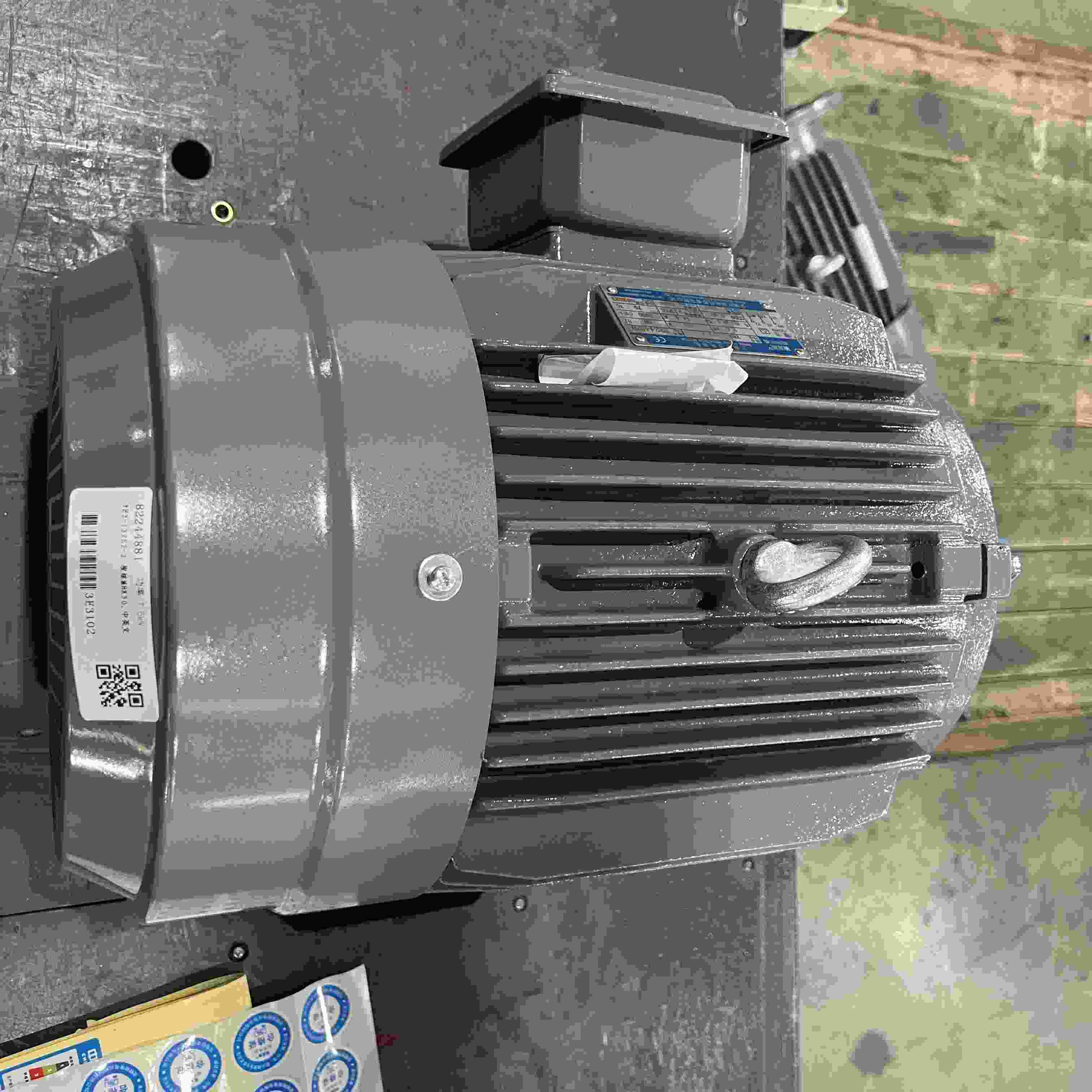

Marine Water Proof Low Vibration Three Phase Electrical Motor With CE
1. Description
The Marine Water-Proof Low Vibration Three-Phase Electrical Motor, certified with CE, is meticulously designed for marine applications. Engineered to withstand harsh marine environments, it boasts water-proof features, ensuring reliable operation even in challenging conditions. With low vibration characteristics, it minimizes disturbances, contributing to smoother and quieter marine operations. The CE certification underscores its compliance with stringent quality and safety standards. Ideal for marine propulsion systems, this motor exemplifies durability and performance, meeting the demanding requirements of the maritime industry.
2. Specifications
| Model NO. | YXEJ |
| Starting Mode | Direct on-line Starting |
| Certification | ISO9001, CCC, Ce, RoHS, Reach |
| Brand | Wannan Motor |
| Frame | 80-315mm |
| Output | 0.18-220kw |
| Efficiency | IE2 |
| Poles | 2, 4, 6, 8, 10 |
| Duty | S1 |
| Insulation | F |
| Cooling | IC411-Tefc |
| Protection Degree | IP55 (Motor) & IP23 (Brake) |
| Voltage | 380V, or Customized |
| Frequency | 50Hz, 60Hz |
| Terminal | Top, Right Side, Left Side |
| Housing | Cast Iron, Aluminum, Stainless Steel |
| Service Factor | 1.0 |
| Mounting Type | B3, B5, B35 |
| Ambient Temp. | 40°c, 1000 M. a.S.L |
| Transport Package | Carton/Wooden Case/Pallet |
| Trademark | WNM |
| Origin | China |
| HS Code | 8501520000 |
| Production Capacity | 2000PCS/Month |
3. Features
Electromagnetic brake, fast braking, energy saving, simple structure, exact position.
Optional Features:
Electrical:
Insulation Class:H
Thermal Protection: PTC Thermistor, Thermostat or PT100
Mechanical:
Others mountings
Sealing:Lip seal, Oil seal
Space Heater
Drain Hole
4. Applications
Widely used for driving machine tools, printing machinery, forging press, transport machinery, packing machinery, food machinery, construction machinery, and woodworking machinery where quick stop, accurate braking, reciprocated operation are demanded.
5. FAQ
Q: Are you a factory or a trading company?
A:We are a factory with 65 years (Since year 1958) manufacturing experience.
Q: Can I buy samples placing orders?
A: Yes.Please feel free to contact us.
Q: Do you offer OEM service?
A: Yes, we can customize it as your request.
Q: What is your lead time?
A: About 30 days after receiving deposit.
Q: What certificates do you have?
A: We have CE, ISO. And we can apply for specific certificate for different country such as SONCAP for Nigeria, SASO for Saudi Arabia, etc
Q: What about the warranty?
A: We offer 12 warranty period as the quality guarantee and lifetime services with charges.Any parts damaged within warranty. We will provide new one for free and supply the solution within 2 workdays.
Q:What service do you offer?
A: Pre-sales service, in-sales service, after-sales service. If you become our local distributor, we can introduce end-customers to purchase from you.
Q:What's your motor winding?
A: 100% copper winding
Q:Which port is near to you?
A: Ningbo port or Shanghai port. And we can arrange to deliver Guangzhou, Shanghai, Urumqi, or other Chinese cities, too.
Q:Could you offer Origin Certification.
A: We can do as your request.
