Chemical Plants Explosion Proof Electric Motors High Efficient
| Place of Origin | China |
|---|---|
| Brand Name | Wanan |
| Certification | CE, ISO9001, CCC, RoHS, Reach |
| Model Number | YB2 YB3 YFB3 |
| Minimum Order Quantity | Negotiable |
| Price | USD, RMB, EURO |
| Packaging Details | Carton/Wooden Case/Pallet |
| Delivery Time | 10 days to 30 days |
| Payment Terms | T/T, L/C, Western Union, MoneyGram |
| Supply Ability | 2000PCS per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | High Efficient Explosive Proof Electric Motors For Chemical Plants | Efficient | High Efficient |
|---|---|---|---|
| Protection Degree | Explosive Proof | Phase | Three Phase |
| Type | Induction Motor | Usage | Chemical Plant |
| Housing | Cast Iron, Aluminum, Stainless Steel | Warranty | 12 Months |
| Highlight | Chemical Plants Explosion Proof Electric Motors,Explosion Proof Electric Motors High Efficient,Three phase waterproof electric motor |
||
Product Description

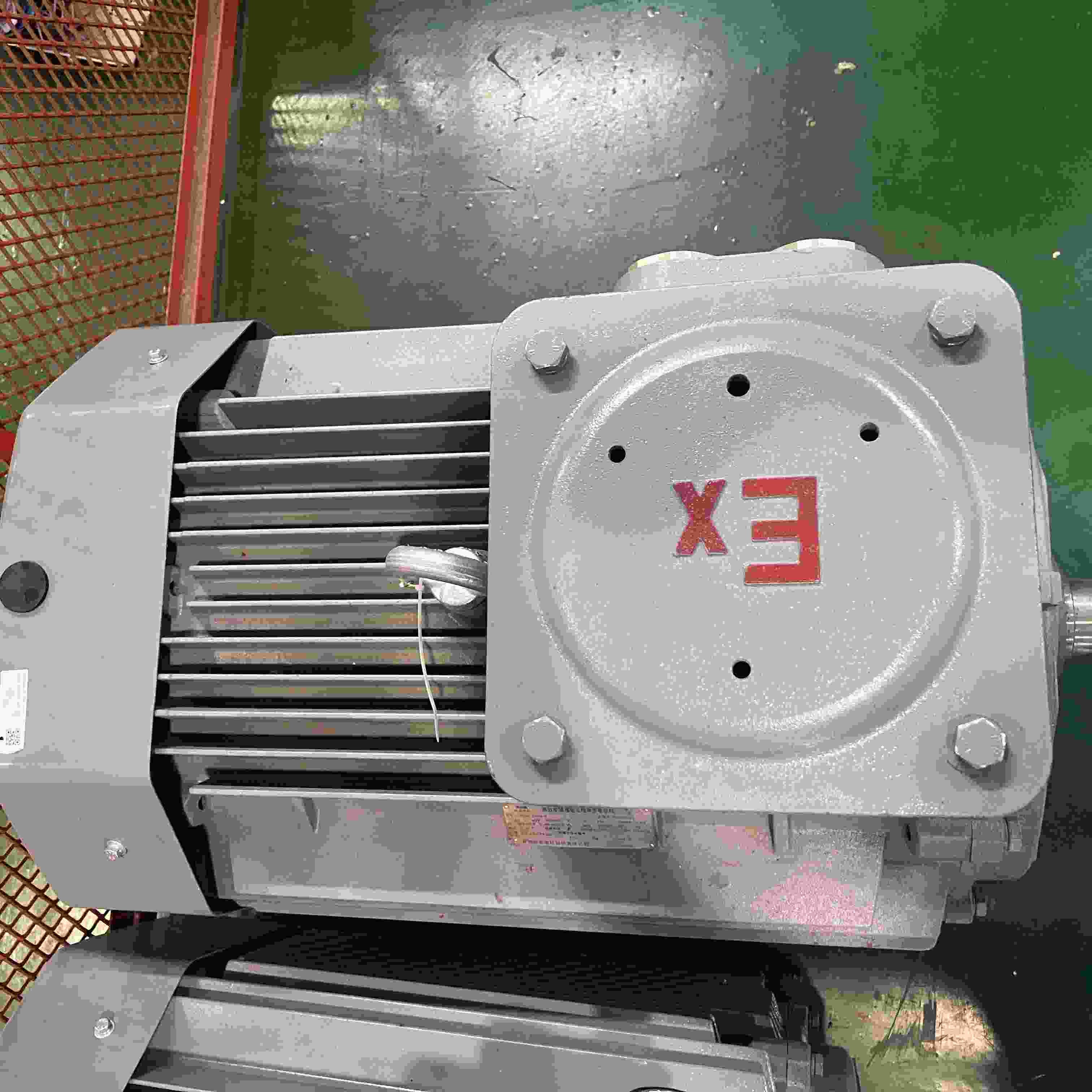

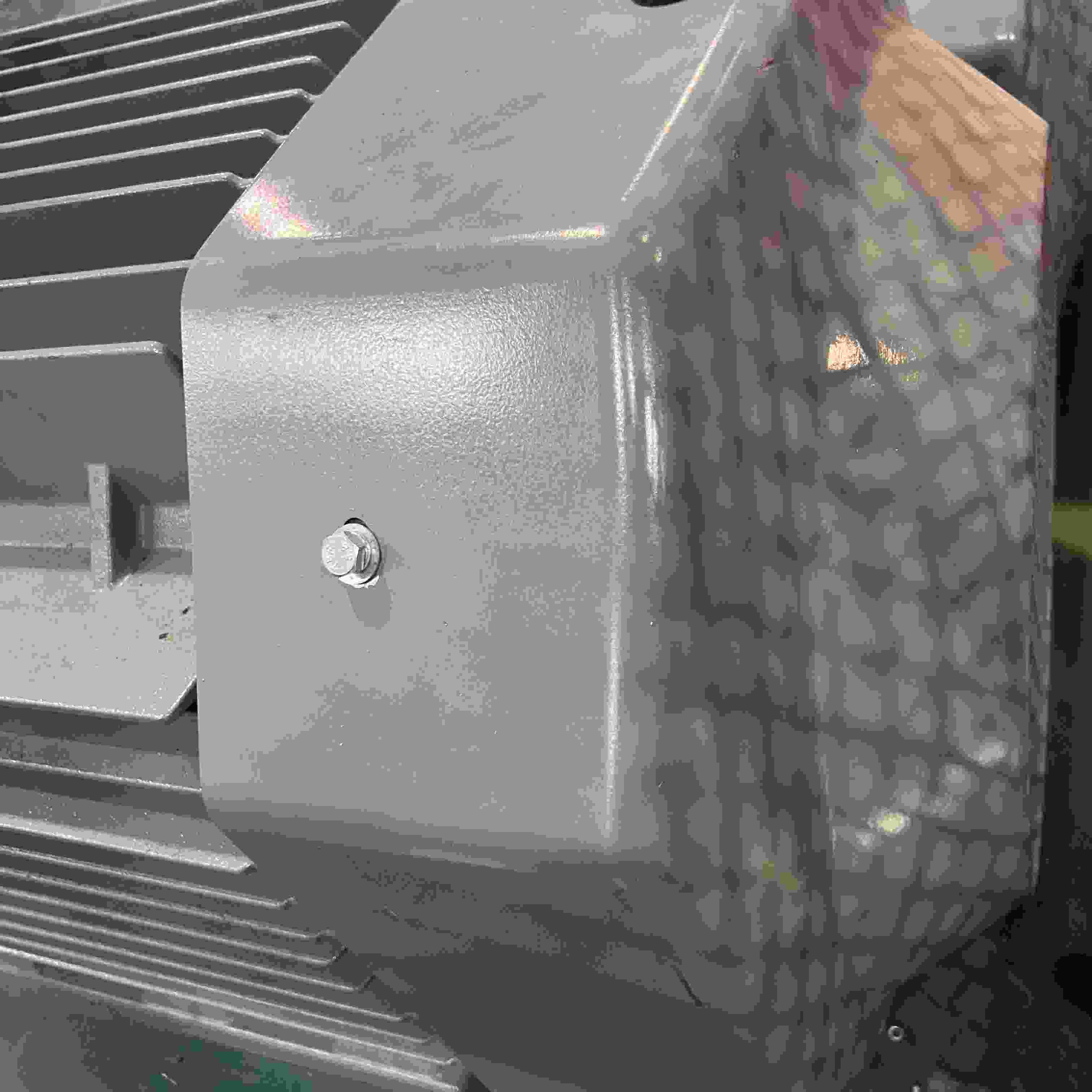

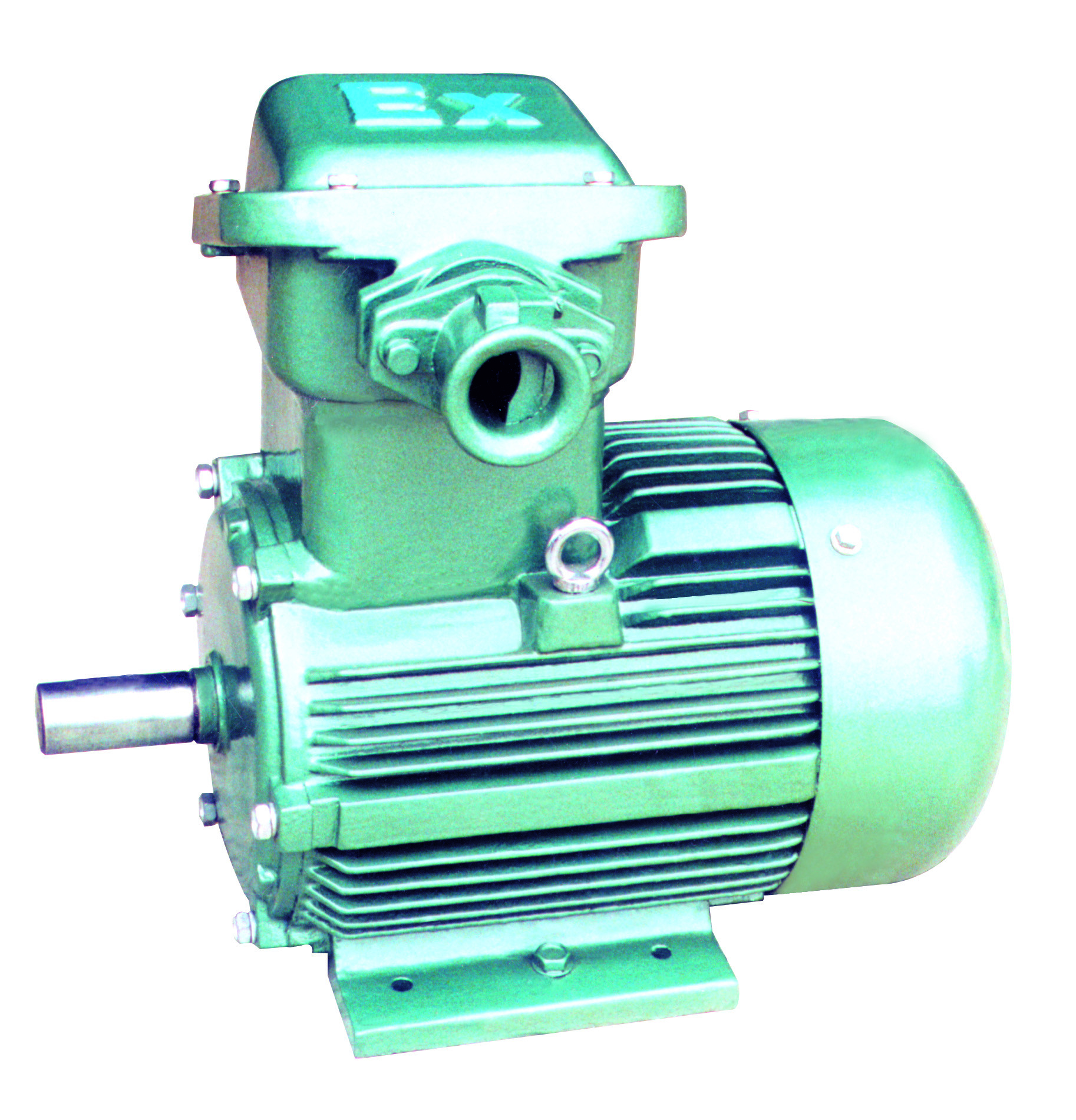

High Efficient Explosive Proof Electric Motors For Chemical Plants
1. Description
High Efficient Explosive Proof Electric Motors for Chemical Plants are a safe and reliable solution for industrial applications in hazardous environments. These motors are designed to meet stringent safety standards and are built to withstand the risk of explosion in chemical plants and similar environments.
These motors are engineered for high efficiency, delivering reliable performance while minimizing energy consumption. They are designed with durable materials that can withstand harsh environments and resist corrosion, making them ideal for use in chemical plants and other hazardous locations.
Explosive Proof Electric Motors are also designed with safety features that help prevent ignition and minimize the risk of explosion. They are equipped with advanced ventilation systems that help to dissipate heat and prevent the buildup of explosive gases.
Overall, High Efficient Explosive Proof Electric Motors for Chemical Plants are a reliable and safe choice for industrial applications in hazardous environments. Their high efficiency, durable construction, and advanced safety features make them a cost-effective and environmentally friendly option for any operation that requires a safe and reliable electric motor.
2. Specifications
| Model NO. |
YB2 YB3 YFB3 |
| Starting Mode | Direct on-line Starting |
| Certification | ISO9001, CCC, Ce, RoHS, Reach |
| Brand | Wannan Motor |
| Frame | 80-355mm |
| Output | 0.18-375kw |
| Efficiency | IE3, IE4 |
| Poles | 2, 4, 6, 8 |
| Duty | S1 |
| Insulation | F or H |
| Cooling |
IC411-Tefc, IC416 |
| Protection Degree |
IP55, IP56, IP65 |
| Voltage |
380V.660V.380V/660V, 660/1140V..... |
| Frequency | 50Hz, 60Hz |
| Terminal | Top |
| Housing | Cast Iron, Aluminum, Stainless Steel |
| EX Exdi, Exdii At4, Exdii Bt4 | |
| Mounting Type | / |
| Ambient Temp. | 40°c, 1000 M. a.S.L |
| Transport Package | Carton/Wooden Case/Pallet |
| Trademark | WNM |
| Origin | China |
| HS Code | 8501520000 |
| Production Capacity | 2000PCS/Month |
3. Features
Exd-symnbol ExdI,ExdIIAT4,ExdIIBT4, Category I:surface highest temperature no higher than 150ºC(when coal dust may cover the motor surface), no higher than 450ºC(when coal dust will not cover the surface or some protection work has been done to prevent the coal dust accumulation) CategoryII :surface highest temperature no higher than T1(450ºC),T2(300ºC),T3(200ºC),T4(135ºC); Terminal box with three or six terminals for rubber jacket cable (plastic cable) and steel cable.
4. Applications
Ideal for the coal mine where methane and coal dust may be present(Ex dI)and dangerous explosion areas(Ex dIIT4,dIIBT4)in the plant with the classIIA, IIB and temperature T1~T4 flammable gas.
5. FAQ
Q: Are you a factory or a trading company?
A:We are a factory with 65 years (Since year 1958) manufacturing experience.
Q: Can I buy samples placing orders?
A: Yes.Please feel free to contact us.
Q: Do you offer OEM service?
A: Yes, we can customize it as your request.
Q: What is your lead time?
A: About 30 days after receiving deposit.
Q: What certificates do you have?
A: We have CE, ISO. And we can apply for specific certificate for different country such as SONCAP for Nigeria, SASO for Saudi Arabia, etc
Q: What about the warranty?
A: We offer 12 warranty period as the quality guarantee and lifetime services with charges.Any parts damaged within warranty. We will provide new one for free and supply the solution within 2 workdays.
Q:What service do you offer?
A: Pre-sales service, in-sales service, after-sales service. If you become our local distributor, we can introduce end-customers to purchase from you.
Q:What's your motor winding?
A: 100% copper winding
Q:Which port is near to you?
A: Ningbo port or Shanghai port. And we can arrange to deliver Guangzhou, Shanghai, Urumqi, or other Chinese cities, too.
Q:Could you offer Origin Certification.
A: We can do as your request.
