Stainless Steel High Speed Electric Motor 3000rpm With GOST Certificate

  • Stainless Steel High Speed Electric Motor 3000rpm With GOST Certificate
  • Stainless Steel High Speed Electric Motor 3000rpm With GOST Certificate
Place of Origin China
Brand Name Wanan
Certification CE, ISO9001, CCC, RoHS, Reach
Model Number YE3/YE4/YE5
Minimum Order Quantity Negotiable
Price USD, RMB, EURO
Packaging Details Carton/Wooden Case/Pallet
Delivery Time 10 days to 30 days
Payment Terms T/T, L/C, Western Union, MoneyGram
Supply Ability 2000PCS per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Stainless Steel High Efficiency Electrical Motors With GOST Certificate Efficiency IE3, IE4, IE5
Cooling Air Cooling Certificate GOST
Type Induction AC Electric Motor Housing Cast Iron, Aluminum, Stainless Steel
Phase Three Phase Warranty 12 Months
Highlight

Stainless Steel high speed electric motor

,

high speed electric motor 3000rpm

,

GOST powerful electric motor
Leave a Message
Product Description

Stainless Steel High Efficiency Electrical Motors With GOST Certificate



1. Description

The Stainless Steel High Efficiency Electrical Motors with GOST Certificate are a premium quality product designed for industrial applications that require high performance and reliability. These motors are built using high-grade stainless steel materials, ensuring durability and long-lasting performance.

Their high efficiency enables these motors to deliver significant energy savings, reducing the overall operating costs of industrial processes. The GOST certification guarantees that these motors meet Russian regulatory standards, ensuring their safety and reliability.

These motors are also designed to operate at low noise levels, ensuring a comfortable working environment. Their stainless steel construction makes them suitable for heavy-duty industrial applications, providing reliable and consistent performance even in demanding environments.

The GOST certification also ensures that these motors are suitable for use in Russia and other countries that require compliance with GOST standards. They are easy to install and maintain, minimizing downtime and reducing maintenance costs.

Overall, the Stainless Steel High Efficiency Electrical Motors with GOST Certificate are an excellent choice for any industrial application that demands high performance, efficiency, and reliability. Their stainless steel construction and GOST certification ensure safety, durability, and compliance with regulatory standards, making them an ideal choice for industrial applications in Russia and other countries.



2. Specifications

Model NO. YE3/YE4/YE5 (IEC60034-30)
Starting Mode Direct on-line Starting
Certification ISO9001, CCC, Ce, RoHS, Reach
Brand Wannan Motor
Frame 63-450mm
Output 0.12-800kw
Efficiency IE3, IE4, IE5
Poles 2, 4, 6, 8, 10, 12, 14
Duty S1, S3, S4, S5, S6
Insulation F, H
Cooling Air cooling or customized water cooling
Protection Degree IP55/56/65
Voltage 380V, or Customized
Frequency 50Hz, 60Hz
Terminal Top, Right Side, Left Side
Housing Cast Iron, Aluminum, Stainless Steel
Service Factor 1.0, 1.15, 1.2
Mounting Type Foot, Flange, Double Shaft Ends
Ambient Temp. 40°c, 1000 M. a.S.L
Transport Package Carton/Wooden Case/Pallet
Trademark WNM
Origin China
HS Code 8501520000
Production Capacity 600PCS/Day







3. Features

  • Beautiful profile
  • High efficiency and energy saving (IE2 of IEC60034-30 and level 3 of GB18613-2012)
  • Class F VPI insulation
  • Low noise
  • Little vibration
  • Reliable performance
  • Flexibility of application
  • Inverter Duty Rated: 2:1CT & 10:1VT at 380V 50 Hz
  • High lock rotor torque
  • Junction box equipped with glands
  • F2 mounting position, F1, F3 is available too
  • Bidirectional fan
  • Oversized ball bearings on both ends for direct coupling
  • Larger WANNAN Metric Motors, up to 2000kW, are also available upon request.



Optional Features:

Electrical:

  • Insulation Class:H
  • Thermal Protection:frame up to 132(include), with PTC Thermistor, Thermostat or PT100

Mechanical:

  • Others mountings
  • Protection Degree:IP56, IP65, IP66
  • Sealing:Lip seal, Oil seal
  • Space Heater, Double shaft ends
  • Drain Hole

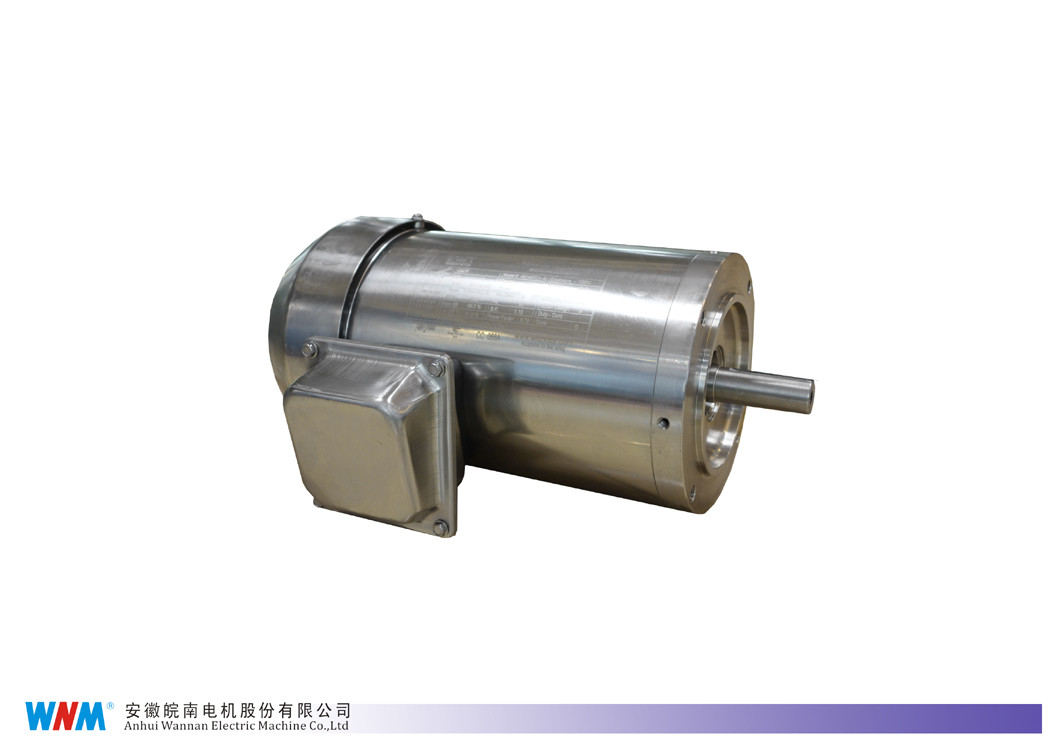

Stainless Steel High Speed Electric Motor 3000rpm With GOST Certificate 0





4. Applications

Designed to meet international standards as replacement motors for overseas applications and machinery such as pumps, conveyors, fans, crushers, compressors, mixers and more.

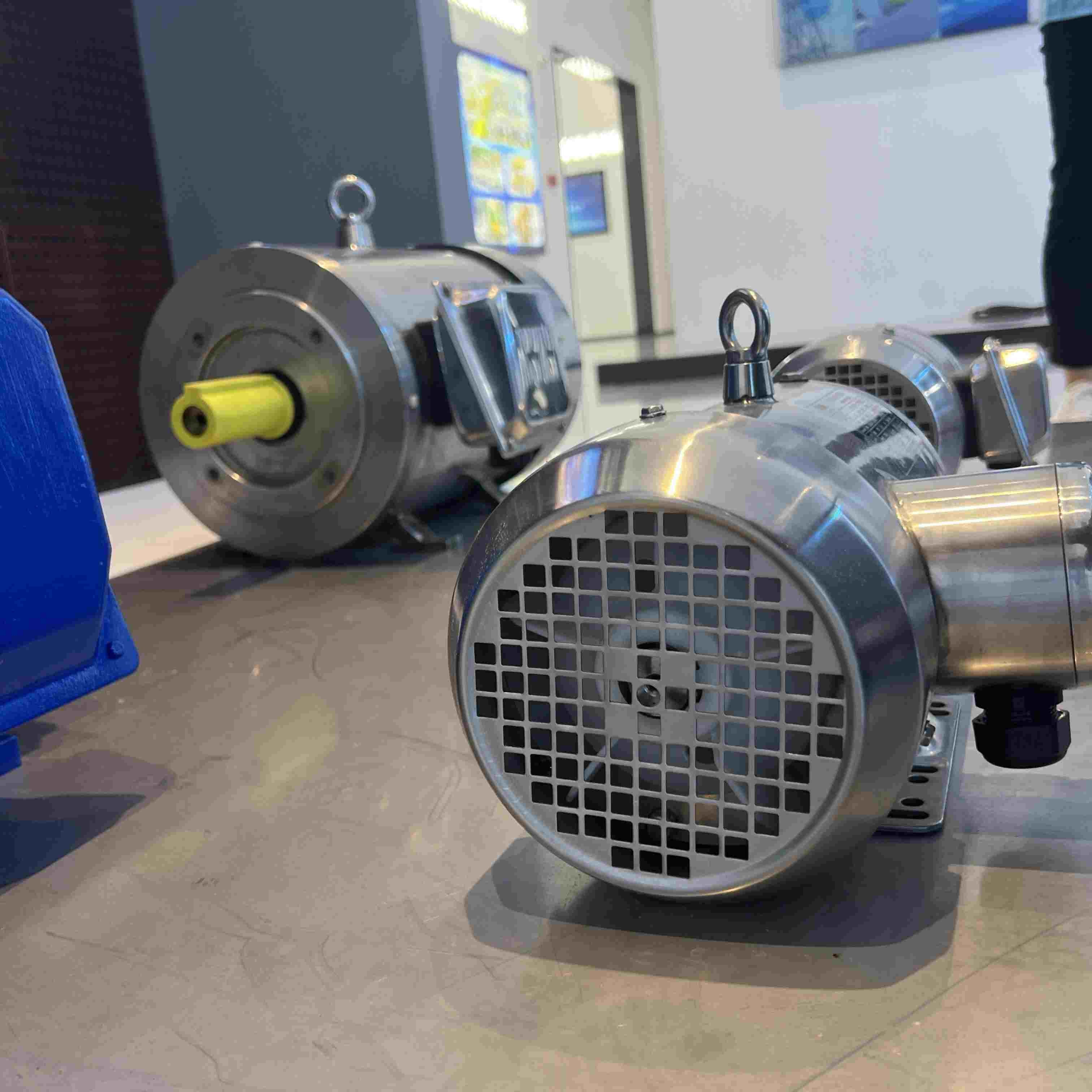

Stainless Steel High Speed Electric Motor 3000rpm With GOST Certificate 1





5. Data sheet table



Model

Output

kW

Rated Ampere

A

 RPM Eff.% Power Factor

Rated Torque

N.m

LRT

FLT

Tst

TN

LRA

FLA

Ist

IN

BDT

FLT

Tmax

TN

 dB(A)
Synchronous speed 3000 r/min
YE3-63M1-2 0.18 0.53 2720 63.9 0.80 0.63 2.2 5.5 2.2 61
YE3-63M2-2 0.25 0.70 2720 67.1 0.81 0.88 2.2 5.5 2.2 61
YE3-71M1-2 0.37 1.0 2740 69.0 0.81 1.29 2.2 6.1 2.2 62
YE3-71M2-2 0.55 1.4 2740 72.3 0.82 1.92 2.2 6.1 2.2 62
YE3-80M1-2 0.75 1.7 2870 80.7 0.82 2.50 2.2 7.0 2.3 62
YE3-80M2-2 1.1 2.4 2875 82.7 0.83 3.65 2.2 7.3 2.3 62
YE3-90S-2 1.5 3.2 2880 84.2 0.84 4.97 2.2 7.6 2.3 67
YE3-90L-2 2.2 4.6 2880 85.9 0.85 7.30 2.2 7.6 2.3 67
YE3-100L-2 3 6.0 2880 87.1 0.87 9.95 2.2 7.8 2.3 74
YE3-112M-2 4 7.8 2915 88.1 0.88 13.1 2.2 8.3 2.3 77
YE3-132S1-2 5.5 10.6 2935 89.2 0.88 17.9 2.0 8.3 2.3 79
YE3-132S2-2 7.5 14.4 2930 90.1 0.88 24.4 2.0 7.9 2.3 79
YE3-160M1-2 11 20.6 2950 91.2 0.89 35.6 2.0 8.1 2.3 81
YE3-160M2-2 15 27.9 2945 91.9 0.89 48.6 2.0 8.1 2.3 81
YE3-160L-2 18.5 34.2 2945 92.4 0.89 60.0 2.0 8.2 2.3 81
YE3-180M-2 22 40.5 2950 92.7 0.89 71.2 2.0 8.2 2.3 83
YE3-200L1-2 30 54.9 2965 93.3 0.89 96.6 2.0 7.6 2.3 84
YE3-200L2-2 37 67.4 2965 93.7 0.89 119 2.0 7.6 2.3 84
YE3-225M-2 45 80.8 2965 94.0 0.90 145 2.0 7.7 2.3 86
YE3-250M-2 55 98.5 2975 94.3 0.90 177 2.0 7.7 2.3 89
YE3-280S-2 75 134 2975 94.7 0.90 241 1.8 7.1 2.3 91
YE3-280M-2 90 160 2975 95.0 0.90 289 1.8 7.1 2.3 91
YE3-280M1-2 110 195 2975 95.2 0.90 353 1.8 7.1 2.3 91





Model

Output

kW

Rated Ampere

A

 RPM Eff.% Power Factor

Rated Torque

N.m

LRT

FLT

Tst

TN

LRA

FLA

Ist

IN

BDT

FLT

Tmax

TN

 dB(A)
Synchronous speed 3000 r/min
YE3-315S-2 110 195 2985 95.2 0.90 352 1.8 7.1 2.3 92
YE3-315M-2 132 234 2985 95.4 0.90 422 1.8 7.1 2.3 92
YE3-315L1-2 160 279 2985 95.6 0.91 512 1.8 7.2 2.3 92
YE3-315L-2 185 323 2985 95.7 0.91 592 1.8 7.2 2.3 92
YE3-315L2-2 200 349 2985 95.8 0.91 640 1.8 7.2 2.2 92
YE3-315L3-2 220 383 2985 95.8 0.91 704 1.8 7.2 2.2 92
YE3-355M1-2 220 383 2985 95.8 0.91 704 1.8 7.2 2.2 100
YE3-355M-2 250 436 2985 95.8 0.91 800 1.6 7.2 2.2 100
YE3-355L1-2 280 488 2985 95.8 0.91 896 1.6 7.2 2.2 100
YE3-355L-2 315 549 2985 95.8 0.91 1008 1.6 7.2 2.2 100
YE3-355 1-2 355 619 2985 95.8 0.91 1136 1.6 7.2 2.2 104
YE3-355 2-2 375 654 2985 95.8 0.91 1200 1.6 7.2 2.2 104
Synchronous speed 1500 r/min
YE3-63M1-4 0.12 0.45 1310 55.8 0.72 0.87 2.1 4.4 2.2 52
YE3-63M2-4 0.18 0.64 1310 58.6 0.73 1.31 2.1 4.4 2.2 52
YE3-71M1-4 0.25 0.81 1330 63.6 0.74 1.80 2.1 5.2 2.2 55
YE3-71M2-4 0.37 1.1 1330 65.3 0.75 2.66 2.1 5.2 2.2 55
YE3-80M1-4 0.55 1.4 1430 80.6 0.75 3.67 2.3 6.5 2.3 56
YE3-80M2-4 0.75 1.8 1430 82.5 0.75 5.01 2.3 6.6 2.3 56
YE3-90S-4 1.1 2.6 1430 84.1 0.76 7.35 2.3 6.8 2.3 59
YE3-90L-4 1.5 3.5 1430 85.3 0.77 10.0 2.3 7.0 2.3 59
YE3-100L1-4 2.2 4.8 1440 86.7 0.81 14.6 2.3 7.6 2.3 64
YE3-100L2-4 3 6.3 1440 87.7 0.82 19.9 2.3 7.6 2.3 64
YE3-112M-4 4 8.4 1455 88.6 0.82 26.3 2.2 7.8 2.3 65
YE3-132S-4 5.5 11.2 1465 89.6 0.83 35.9 2.0 7.9 2.3 71
YE3-132M-4 7.5 15.0 1465 90.4 0.84 48.9 2.0 7.5 2.3 71
YE3-160M-4 11 21.5 1470 91.4 0.85 71.5 2.0 7.7 2.3 73
YE3-160L-4 15 28.8 1470 92.1 0.86 97.4 2.0 7.8 2.3 73
YE3-180M-4 18.5 35.3 1470 92.6 0.86 120 2.0 7.8 2.3 76
YE3-180L-4 22 41.8 1470 93.0 0.86 143 2.0 7.8 2.3 76
YE3-200L-4 30 56.6 1475 93.6 0.86 194 2.0 7.3 2.3 76
YE3-225S-4 37 69.6 1480 93.9 0.86 239 2.0 7.4 2.3 78
YE3-225M-4 45 84.4 1480 94.2 0.86 290 2.0 7.4 2.3 78
YE3-250M-4 55 103 1485 94.6 0.86 354 2.0 7.4 2.3 79
YE3-280S-4 75 136 1490 95.0 0.88 481 2.0 6.7 2.3 80
YE3-280M-4 90 163 1490 95.2 0.88 577 2.0 6.9 2.3 80
YE3-280M1-4 110 197 1490 95.4 0.89 705 2.0 7.0 2.2 80
YE3-315S-4 110 197 1490 95.4 0.89 705 2.0 7.0 2.2 88
YE3-315M-4 132 236 1490 95.6 0.89 846 2.0 7.0 2.2 88
YE3-315L1-4 160 285 1490 95.8 0.89 1026 2.0 7.1 2.2 88
YE3-315L-4

185

85

 329 1490 95.9 0.89 1186 2.0 7.1 2.2 88







6. FAQ

Q: Are you a factory or a trading company?

A:We are a factory with 65 years (Since year 1958) manufacturing experience.

Q: Can I buy samples placing orders?

A: Yes.Please feel free to contact us.

Q: Do you offer OEM service?

A: Yes, we can customize it as your request.

Q: What is your lead time?

A: About 30 days after receiving deposit.

Q: What certificates do you have?

A: We have CE, ISO. And we can apply for specific certificate for different country such as SONCAP for Nigeria, SASO for Saudi Arabia, etc

Q: What about the warranty?

A: We offer 12 warranty period as the quality guarantee and lifetime services with charges.Any parts damaged within warranty. We will provide new one for free and supply the solution within 2 workdays.

Q:What service do you offer?

A: Pre-sales service, in-sales service, after-sales service. If you become our local distributor, we can introduce end-customers to purchase from you.

Q:What's your motor winding?

A: 100% copper winding

Q:Which port is near to you?

A: Ningbo port or Shanghai port. And we can arrange to deliver Guangzhou, Shanghai, Urumqi, or other Chinese cities, too.

Q:Could you offer Origin Certification.

A: We can do as your request.
