Anti Corrosion Electric Motor IE4 Low Voltage Aluminum Cast Iron
| Place of Origin | China |
|---|---|
| Brand Name | Wanan |
| Certification | CE, ISO9001, CCC, RoHS, Reach |
| Model Number | YXEJ |
| Minimum Order Quantity | Negotiable |
| Price | USD, RMB, EURO |
| Packaging Details | Carton/Wooden Case/Pallet |
| Delivery Time | 10 days to 30 days |
| Payment Terms | T/T, L/C, Western Union, MoneyGram |
| Supply Ability | 2000PCS per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | IE4 Anti-Corrosion High Efficient Low Voltage Electric Motors With CE | Feature | Anti-Corrosion |
|---|---|---|---|
| Certificate | CE | Type | IE4 |
| HZ | 50HZ Or 60Hz | Housing | Cast Iron, Aluminum, Stainless Steel |
| Protection Degree | IP55/56/65 | Warranty | 12 Months |
| Highlight | Anhui china Jingxian kaiwen Anti Corrosion high efficiency electric motor,Anhui china Jingxian kaiwen high efficiency electric motor IE4,Anhui china Jingxian kaiwen Low Voltage ev electric motor |
||
Product Description

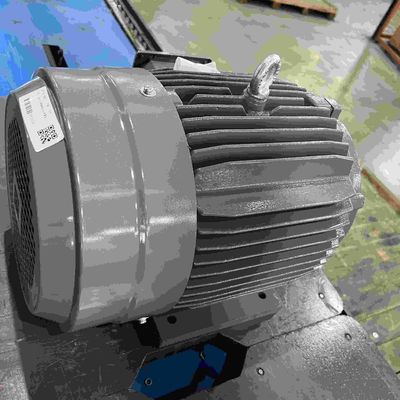

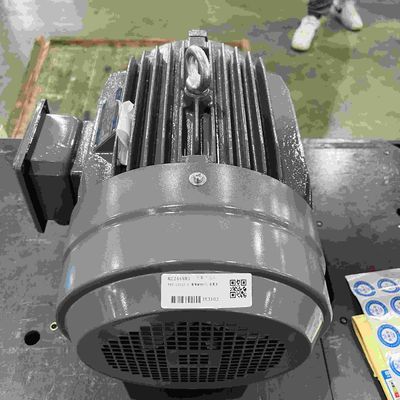

IE4 Anti-Corrosion High Efficient Low Voltage Electric Motors With CE
1. Description
The IE4 Anti-Corrosion High Efficient Low Voltage Electric Motors with CE are high-quality motors designed to provide outstanding performance and energy efficiency in harsh and corrosive environments. These motors feature a special anti-corrosion coating that protects the motor from damage caused by corrosive substances, making them an ideal choice for use in demanding industrial settings.
These motors meet the highest efficiency standards, ensuring energy savings and reduced operating costs. With a high starting torque and low noise operation, they are perfect for use in a variety of equipment, including pumps, fans, and compressors.
The IE4 Anti-Corrosion High Efficient Low Voltage Electric Motors with CE are designed to be compact and lightweight, making them easy to install and use in a variety of settings. They feature a high-quality bearing system that ensures smooth and reliable operation for extended periods of time.
These motors are certified to meet the highest safety and quality standards, providing peace of mind to users.
Overall, the IE4 Anti-Corrosion High Efficient Low Voltage Electric Motors with CE are a versatile and reliable motor solution that offers exceptional performance and energy efficiency in harsh and corrosive environments. Their anti-corrosion coating provides superior protection, making them an excellent choice for a wide range of industrial applications that require reliable, durable, and corrosion-resistant motors.
2. Specifications
| Model NO. |
YXEJ |
| Starting Mode | Direct on-line Starting |
| Certification | ISO9001, CCC, Ce, RoHS, Reach |
| Brand | Wannan Motor |
| Frame | 80-315mm |
| Output | 0.18-220kw |
| Efficiency | IE2 |
| Poles | 2, 4, 6, 8, 10 |
| Duty | S1 |
| Insulation | F |
| Cooling |
IC411-Tefc |
| Protection Degree |
IP55 (Motor) & IP23 (Brake) |
| Voltage | 380V, or Customized |
| Frequency | 50Hz, 60Hz |
| Terminal | Top, Right Side, Left Side |
| Housing | Cast Iron, Aluminum, Stainless Steel |
| Service Factor | 1.0 |
| Mounting Type |
B3, B5, B35 |
| Ambient Temp. | 40°c, 1000 M. a.S.L |
| Transport Package | Carton/Wooden Case/Pallet |
| Trademark | WNM |
| Origin | China |
| HS Code | 8501520000 |
| Production Capacity | 2000PCS/Month |
3. Features
Electromagnetic brake, fast braking, energy saving, simple structure, exact position.
Optional Features:
Electrical:
Insulation Class:H
Thermal Protection: PTC Thermistor, Thermostat or PT100
Mechanical:
Others mountings
Sealing:Lip seal, Oil seal
Space Heater
Drain Hole
4. Applications
Widely used for driving machine tools, printing machinery, forging press, transport machinery, packing machinery, food machinery, construction machinery, and woodworking machinery where quick stop, accurate braking, reciprocated operation are demanded.
5. FAQ
Q: Are you a factory or a trading company?
A:We are a factory with 65 years (Since year 1958) manufacturing experience.
Q: Can I buy samples placing orders?
A: Yes.Please feel free to contact us.
Q: Do you offer OEM service?
A: Yes, we can customize it as your request.
Q: What is your lead time?
A: About 30 days after receiving deposit.
Q: What certificates do you have?
A: We have CE, ISO. And we can apply for specific certificate for different country such as SONCAP for Nigeria, SASO for Saudi Arabia, etc
Q: What about the warranty?
A: We offer 12 warranty period as the quality guarantee and lifetime services with charges.Any parts damaged within warranty. We will provide new one for free and supply the solution within 2 workdays.
Q:What service do you offer?
A: Pre-sales service, in-sales service, after-sales service. If you become our local distributor, we can introduce end-customers to purchase from you.
Q:What's your motor winding?
A: 100% copper winding
Q:Which port is near to you?
A: Ningbo port or Shanghai port. And we can arrange to deliver Guangzhou, Shanghai, Urumqi, or other Chinese cities, too.
Q:Could you offer Origin Certification.
A: We can do as your request.
