Low Vibration Dust Proof Permanent Magnet Synchronous Electric Motors
| Place of Origin | China |
|---|---|
| Brand Name | Wanan |
| Certification | CE, ISO9001, CCC, RoHS, Reach |
| Model Number | TYCP |
| Minimum Order Quantity | Negotiable |
| Price | USD, RMB, EURO |
| Packaging Details | Carton/Wooden Case/Pallet |
| Delivery Time | 10 days to 30 days |
| Payment Terms | T/T, L/C, Western Union, MoneyGram |
| Supply Ability | 2000PCS per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Permanent Magnet Synchronous Electric Motors | Feature | Dust-Proof |
|---|---|---|---|
| Certificate | GOST | Phase | Three Phase |
| Type | Induction Motor | Usage | Mixers |
| Housing | Cast Iron, Aluminum, Stainless Steel | Warranty | 12 Months |
| Highlight | Dust Proof permanent magnet synchronous electric motor,permanent magnet synchronous electric motor 50Hz,Variable pm synchronous motor |
||
Product Description

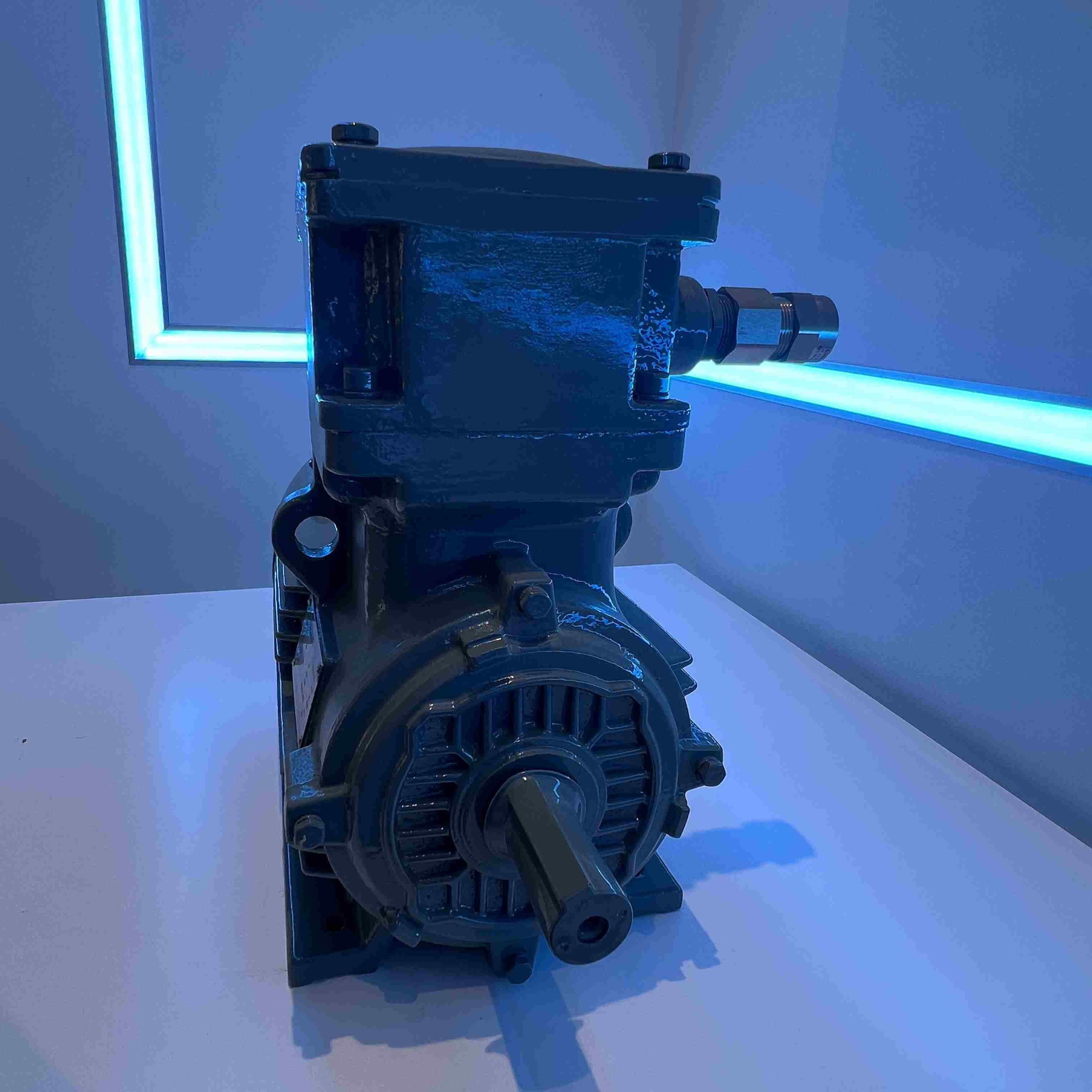

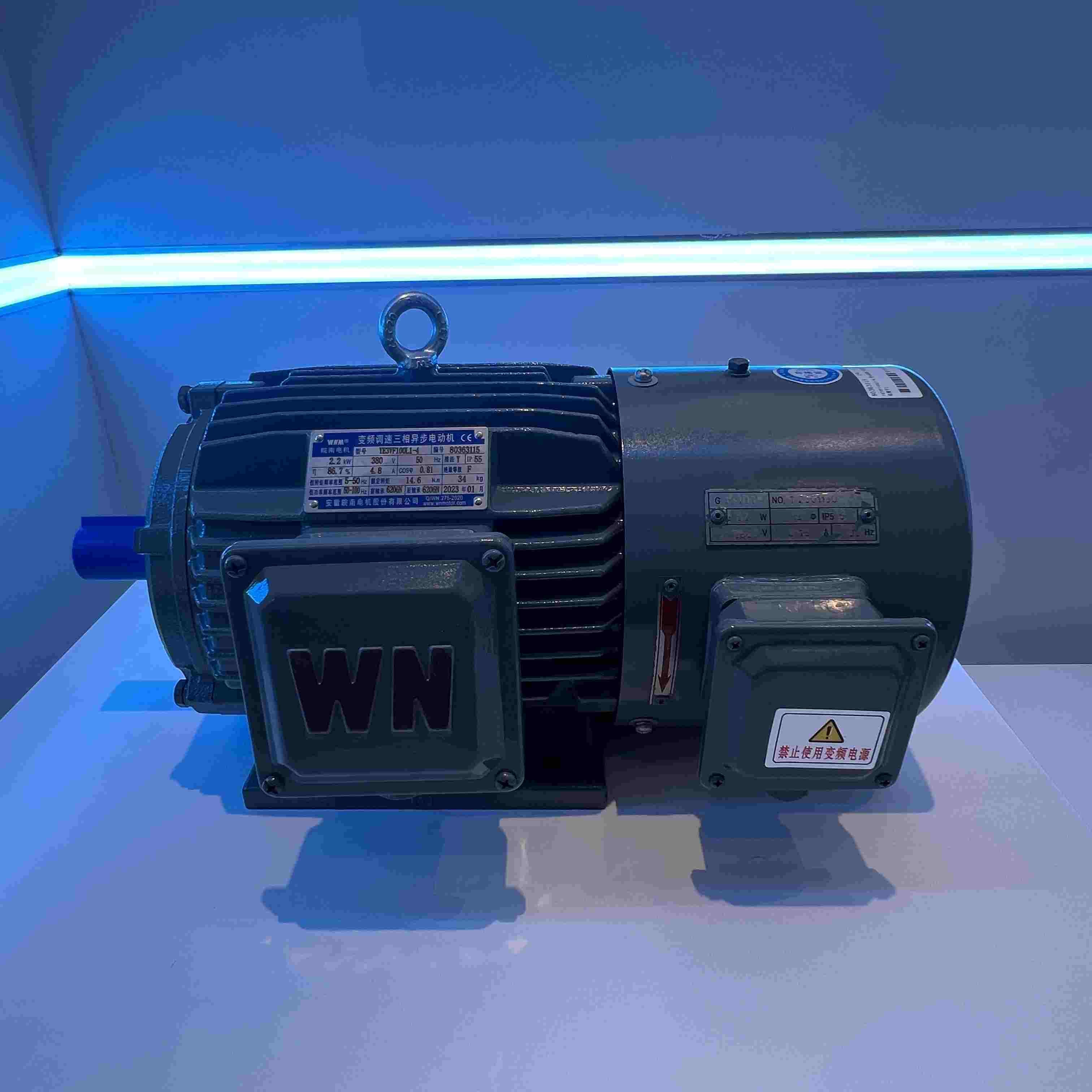

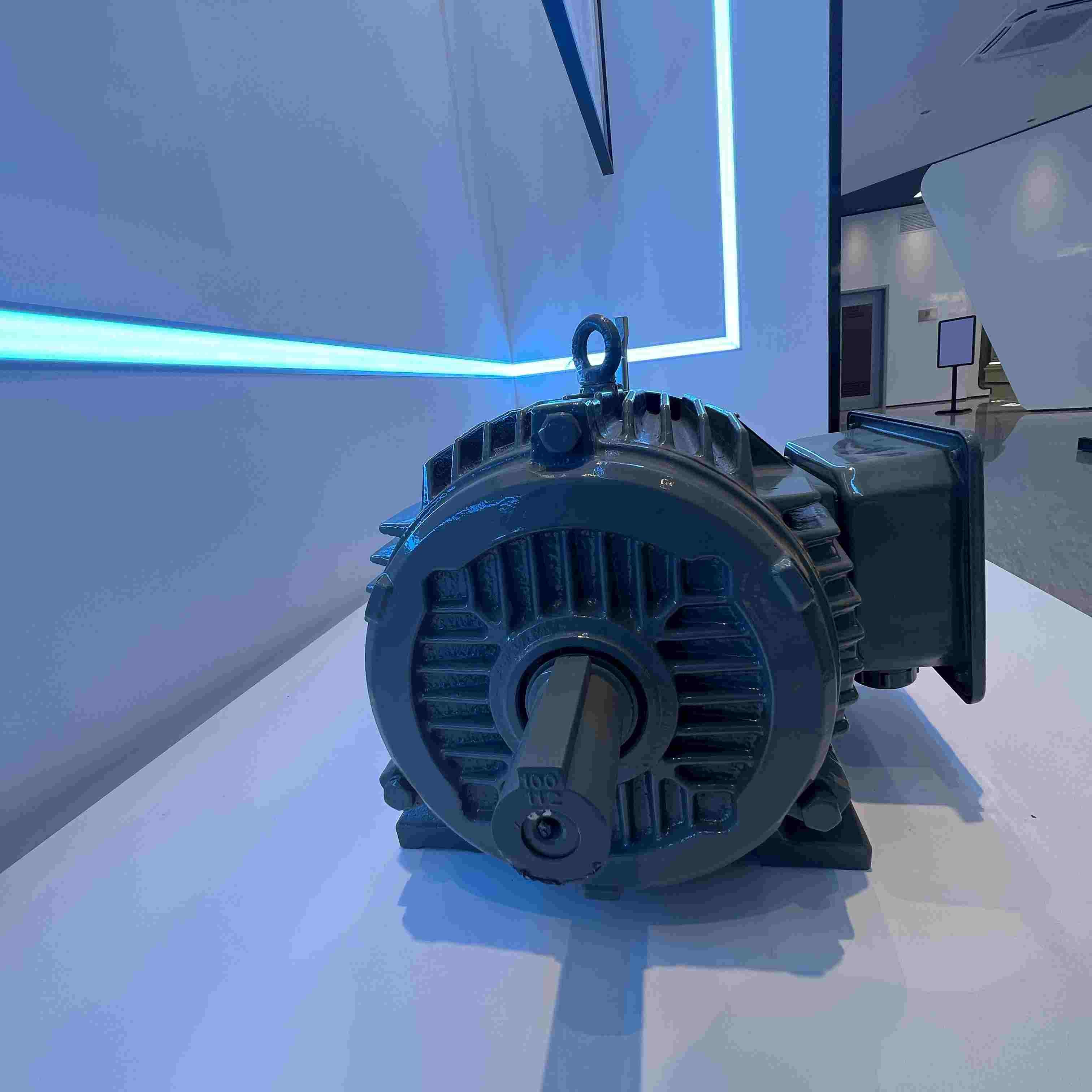

Low Vibration Dust Proof Permanent Magnet Synchronous Electric Motors
1. Description
The Low Vibration Dust-Proof Permanent Magnet Synchronous Electric Motors are engineered to minimize vibrations, providing a stable and smooth operation. Designed with advanced features, these motors excel in applications where vibration control is crucial. Their dust-proof construction ensures durability and reliability in challenging environments. Ideal for industries where precise and low-vibration performance is essential, these motors offer a superior solution. Whether in manufacturing processes or other sensitive applications, their design stands out for its ability to maintain efficiency and stability while minimizing vibrations, contributing to overall system reliability.
2. Specifications
| Model NO. | TYCP |
| Starting Mode | Direct on-line Starting |
| Certification | ISO9001, CCC, Ce, RoHS, Reach |
| Brand | Wannan Motor |
| Frame | 80, 90, 355 |
| Output | 0.55-375kw |
| Efficiency | IE3, IE4 |
| Poles | 2, 4, 6, 8 |
| Duty | S1 |
| Insulation | F |
| Cooling | IC411, IC416 |
| Protection Degree | IP55 |
| Voltage | 380V or customized |
| Frequency | 50Hz, 60Hz |
| Terminal | Top, Right Side, Left Side |
| Housing | Cast Iron, Aluminum, Stainless Steel |
| EX Exdi, Exdii At4, Exdii Bt4 | |
| Mounting Type | / |
| Ambient Temp. | -15℃~40℃ |
| Transport Package | Carton/Wooden Case/Pallet |
| Trademark | WNM |
| Origin | China |
| HS Code | 8501520000 |
| Production Capacity | 2000PCS/Month |
3. Features
T means for synchronous, YC for permanent magnet, and P for pump.These series motors have many virtues, including beautiful profile, high efficiency and energy saving, class F insulated, the protective class is IP55, low noise, little vibration, reliable running. Operating with WN90T inverter, the motor can be applied in various condition.
Optional Features:
Electrical:
Insulation Class:H
Thermal Protection: PTC Thermistor, Thermostat or PT100
Mechanical:
Others mountings
Sealing:Lip seal, Oil seal
Space Heater
Drain Hole
4. Applications
Widely applied in the transmission machinery of machinery and mining, metallurgy, textile, printing and dyeing, chemical industry by which step change of rotational speed is needed to meet the requirements of load character.
5. FAQ
Q: Are you a factory or a trading company?
A:We are a factory with 65 years (Since year 1958) manufacturing experience.
Q: Can I buy samples placing orders?
A: Yes.Please feel free to contact us.
Q: Do you offer OEM service?
A: Yes, we can customize it as your request.
Q: What is your lead time?
A: About 30 days after receiving deposit.
Q: What certificates do you have?
A: We have CE, ISO. And we can apply for specific certificate for different country such as SONCAP for Nigeria, SASO for Saudi Arabia, etc
Q: What about the warranty?
A: We offer 12 warranty period as the quality guarantee and lifetime services with charges.Any parts damaged within warranty. We will provide new one for free and supply the solution within 2 workdays.
Q:What service do you offer?
A: Pre-sales service, in-sales service, after-sales service. If you become our local distributor, we can introduce end-customers to purchase from you.
Q:What's your motor winding?
A: 100% copper winding
Q:Which port is near to you?
A: Ningbo port or Shanghai port. And we can arrange to deliver Guangzhou, Shanghai, Urumqi, or other Chinese cities, too.
Q:Could you offer Origin Certification.
A: We can do as your request.
